Capacitor, Ignition: Installation: 2.4L
WARNING: This page is about a different car, the 2016 Dodge Journey and 2015 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

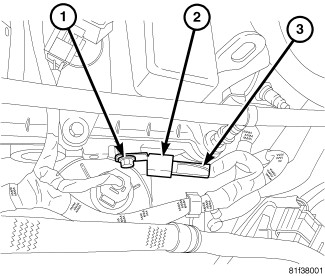

| 1 - Bolt |
| 2 - Capacitor |
| 3 - Connector |
- Install ignition coil capacitor (2) and bolt (1), tighten bolt to 10 N.m (88.5 ft. lbs.).
- Connect electrical connector (3).
- Install engine cover.
- Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
