Pump, Water: Installation: 6.2L

Courtesy of CHRYSLER GROUP, LLC

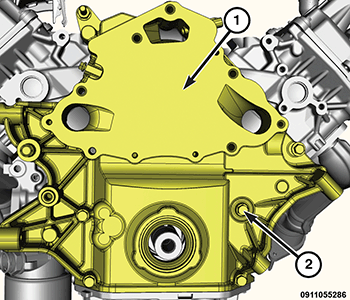

Clean and inspect the mating surfaces of the timing chain cover (1) and the water pump.

Courtesy of CHRYSLER GROUP, LLC

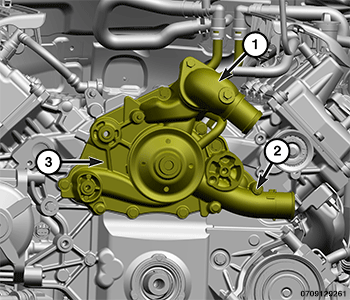

Install the water pump (3) and tighten the bolts (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
Install the lower radiator hose.
Install the upper radiator hose to the thermostat housing (1).

Courtesy of CHRYSLER GROUP, LLC

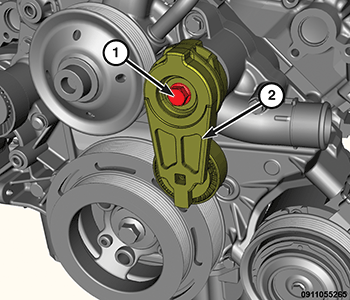

Install the belt tensioner assembly (2) and tighten the bolt (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

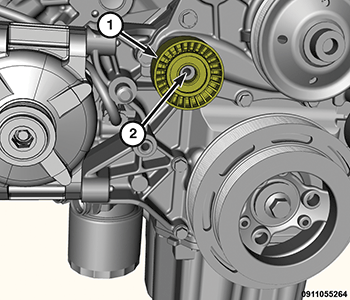

Install the idler pulley (1) and tighten the bolt (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
Connect the temperature sensor wire hire harness connector.

Courtesy of CHRYSLER GROUP, LLC

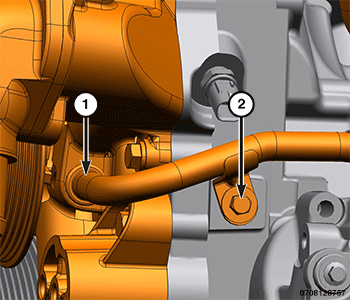

Using a new O-ring seal, install heater tube (1). Tighten the bolt (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
Install supercharger belt. Refer to BELT, DRIVE, INSTALLATION .
Install serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
Install the front skid plate. Refer to PLATE, SKID, TRANSFER CASE, REMOVAL .
Connect the negative battery cable.
Evacuate air and refill cooling system. Refer to STANDARD PROCEDURE .
Check cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
