Sensor, Boost Pressure: Installation
WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect O-ring seal.
- Lubricate O-ring seal.

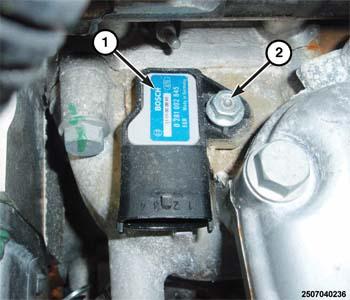

- Install the boost pressure sensor (1) and securely tighten the bolt (2).

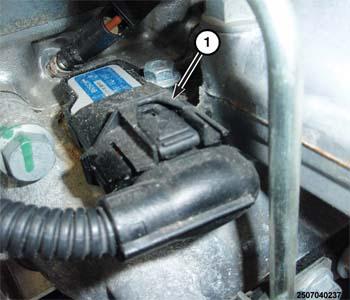

- Connect the boost pressure sensor wire harness connector (1).

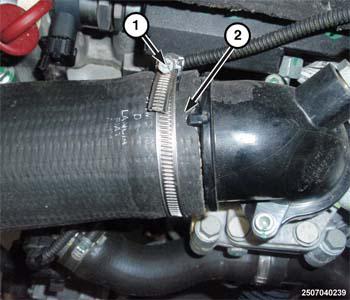

- Install the Charge Air Cooler (CAC) hose from the EGR air flow control valve elbow and securely tighten clamp.
- Install the radiator crossmember. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
- Connect the negative battery cable.
