Removal And Installation: Left: Installation

CAUTION:

Special care should be taken when installing spark plugs into the cylinder head spark plug wells. Be sure the plugs do not drop into the plug wells as electrodes can be damaged.

Courtesy of CHRYSLER GROUP, LLC

Start the spark plug into the cylinder head (1) by hand to avoid cross threading.
CAUTION:
Spark plug torque is critical and must not exceed the specified value. Overtightening stretches the spark plug shell reducing its heat transfer capability resulting in possible catastrophic engine failure.
Tighten the spark plug(s) to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

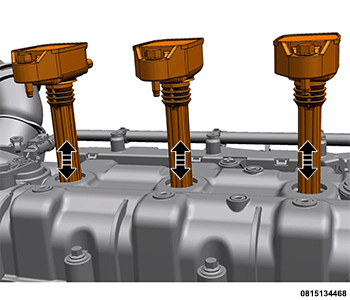

Install the ignition coil(s). Refer to COIL, IGNITION, REMOVAL AND INSTALLATION .
Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
