Damper, Vibration: Installation

GC0121273Courtesy of CHRYSLER GROUP, LLC
  1. Apply clean engine oil to the vibration damper bolt threads and between the bolt head and washer.

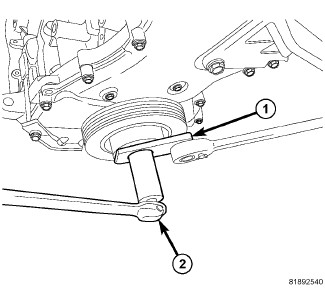

  2. Install the vibration damper and vibration damper bolt. Use (special tool #9707, Holder, Vibration Damper) (1) and tighten the bolt to the proper

    Refer to (TORQUE SPECIFICATION ).

  3. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
