Side Engine Cover

GC0187169Courtesy of CHRYSLER GROUP, LLC
  1. Engage the two lower rubber mounting grommets (1) and install the side engine cover.

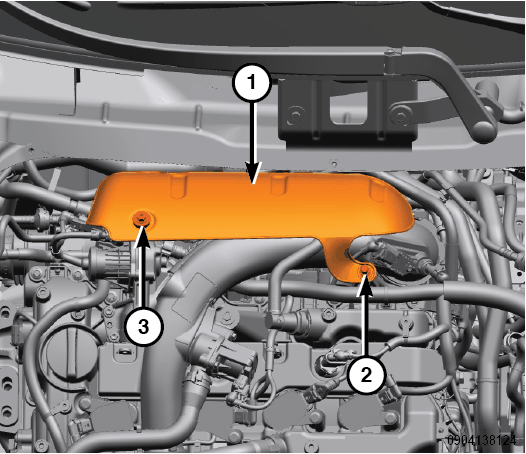

    GC0186394Courtesy of CHRYSLER GROUP, LLC
  2. Install the ball stud (2) and side engine cover bolt (3) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  3. Install the top engine cover. Refer to TOP ENGINE COVER  .
