Load Beam, Lower: Installation

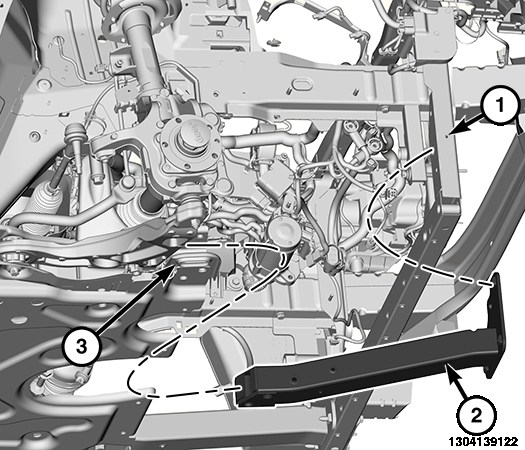

GC0186548Courtesy of CHRYSLER GROUP, LLC
  1. Position a lower load beam (2) on into the crossmember (3) and against the front end module (1).

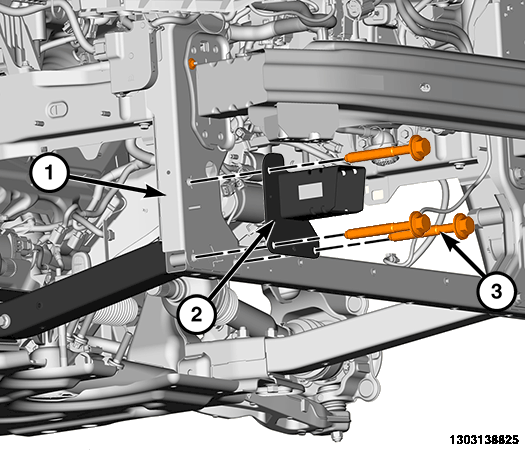

    GC0186863Courtesy of CHRYSLER GROUP, LLC
  2. Position the lower load beam extensions (2) and install the bolts (3).
  3. Tighten the lower load beam extension bolts (3) to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

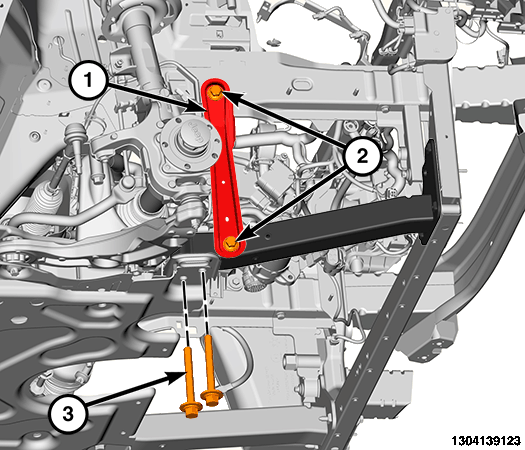

    GC0186900Courtesy of CHRYSLER GROUP, LLC
  4. Install the two lower bolts (3) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
  5. Install the load beam link (1) and install the bolts (2).
  6. Tighten the bolts (2) to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
  7. Install the vehicle height sensor, if equipped. Refer to SENSOR, AXLE, INSTALLATION .
  8. Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION .
