Tray, Battery: Description

Courtesy of CHRYSLER GROUP, LLC

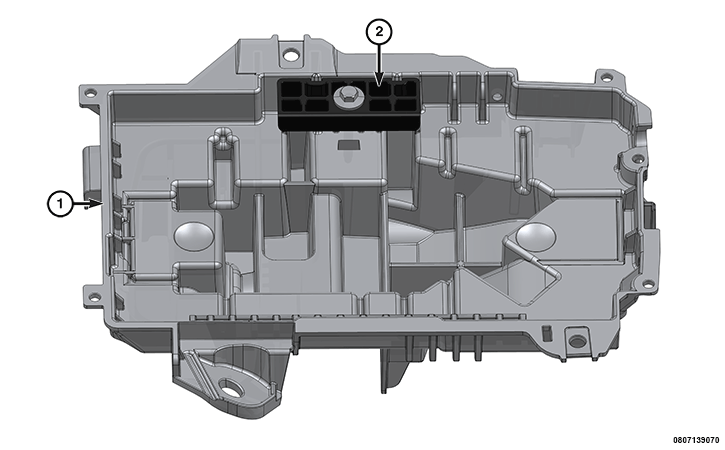

The battery tray (1) is located in the left front side of the vehicle, just ahead of the left front wheel and tire assembly secured to the frame rail. The battery is held to the battery tray by use of a battery hold-down bracket (2) and bolt.
