Removal And Installation: Removal

  1. Remove the engine timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION .

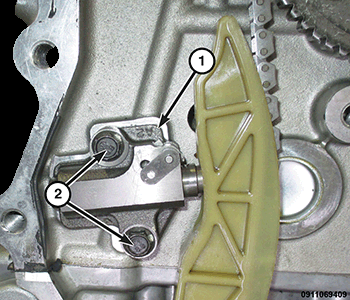

    GC0171480Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts (2) and the engine timing chain tensioner (1).
