Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the driveshaft in the vehicle.

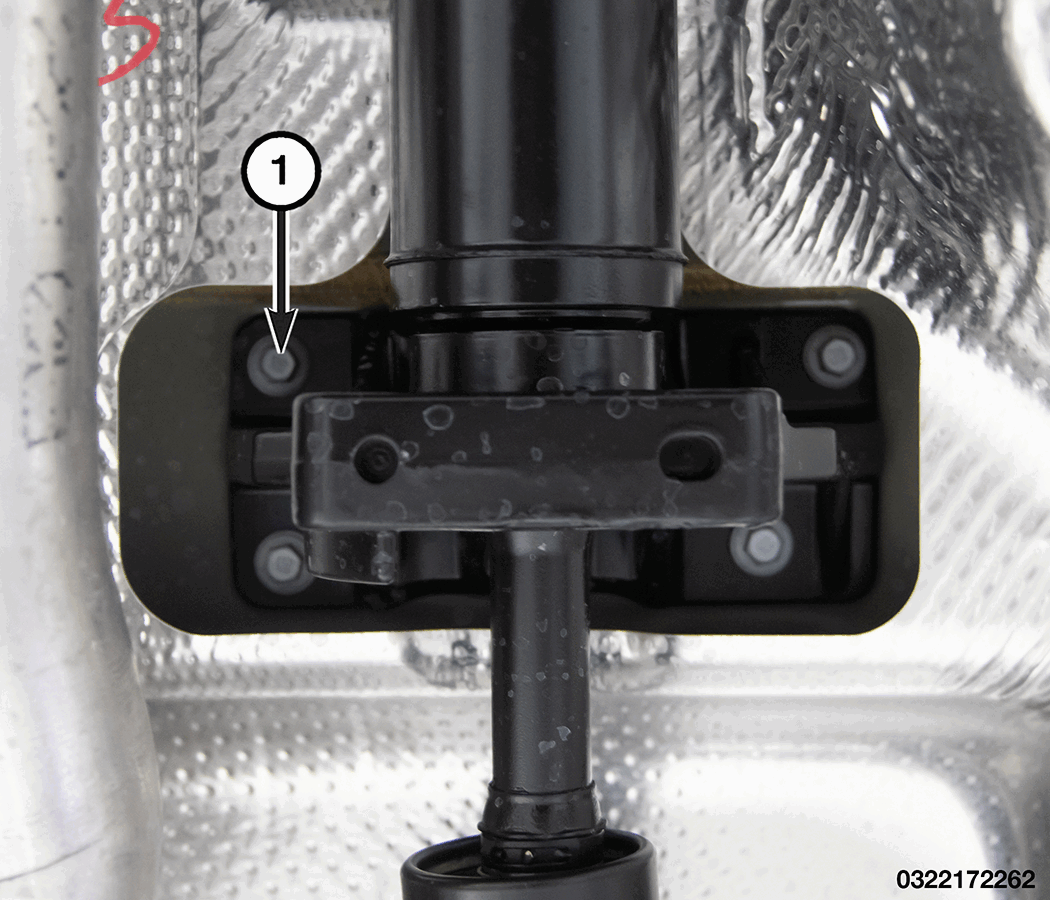

    GC0200258Courtesy of CHRYSLER GROUP, LLC
  2. Position the driveshaft support bearing to the body. Install the fasteners (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

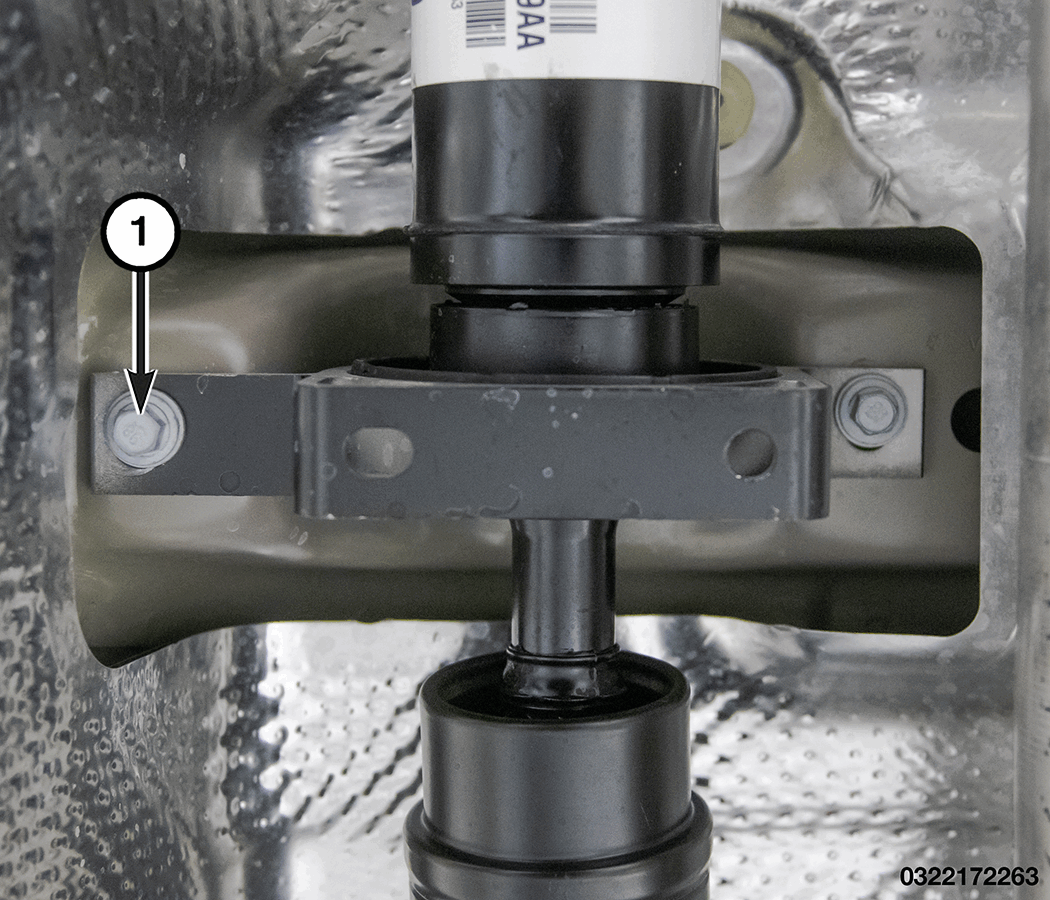

    GC0200280Courtesy of CHRYSLER GROUP, LLC
  3. Position the driveshaft support bearing to the body. Install the fasteners (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0200373Courtesy of CHRYSLER GROUP, LLC
  4. Join the driveshaft with the pinion flange, aligning the index mark.
  5. Install NEW  driveshaft bolts (1). Tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  6. Install a NEW  retention ring on the output shaft of the PTU. Lightly grease the splines of the output shaft.
    GC0200351Courtesy of CHRYSLER GROUP, LLC
  7. Install the driveshaft (1) to the PTU.
  8. Remove the jack stand and rotate the drivetrain in position.
    GC0200250Courtesy of CHRYSLER GROUP, LLC
  9. Install the rear torque strut fastener (1) at the transmission. Tighten to proper torque specification. Refer to ENGINE SPECIFICATIONS .
  10. Remove the support and lower the vehicle.
