Front Case

WARNING: This page is about a different variant/trim than selected.
FRONT CASE

ITEM DEPTH
1. 7mm (0.28in)
2. 10.45mm (0.41in)
3. -
4. 3.5mm (0.14in)
5. 2.5mm (0.09in)
6. 1.1mm (0.04in)
7. 12.8mm (0.50in)
8. 47.6mm (1.87in)
GC0181416Courtesy of CHRYSLER GROUP, LLC

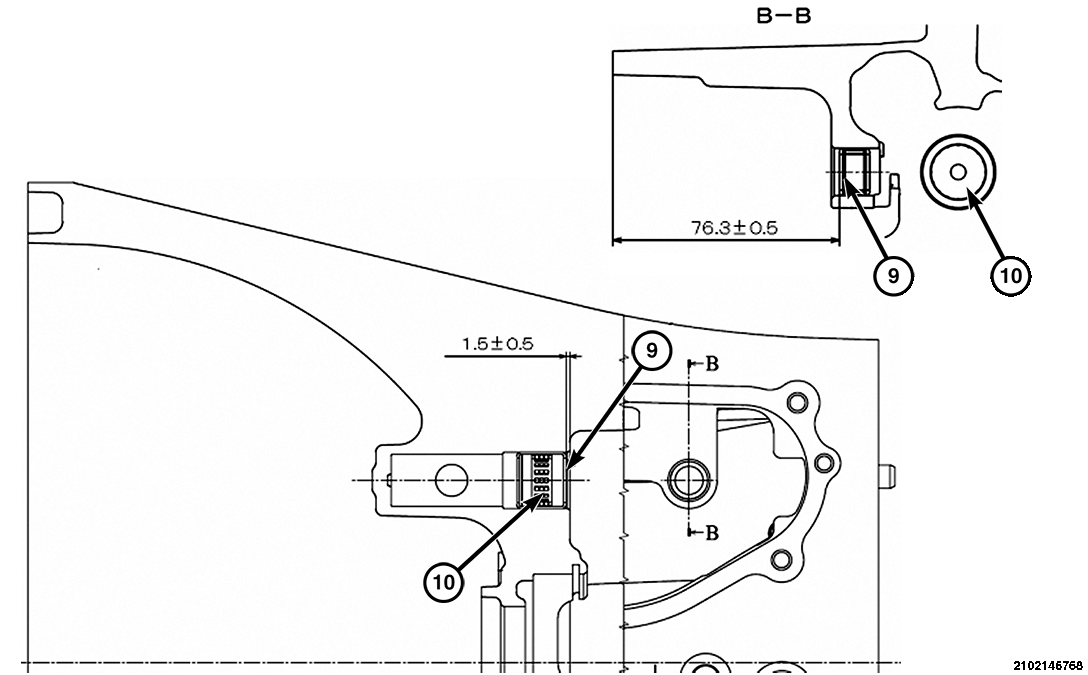

FRONT CASE

ITEM DEPTH
9. 76.3mm (3.00in)
10. 1.5mm (0.05in)
GC0182975Courtesy of CHRYSLER GROUP, LLC
