Torque Specification

GC0205904

Courtesy of CHRYSLER GROUP, LLC

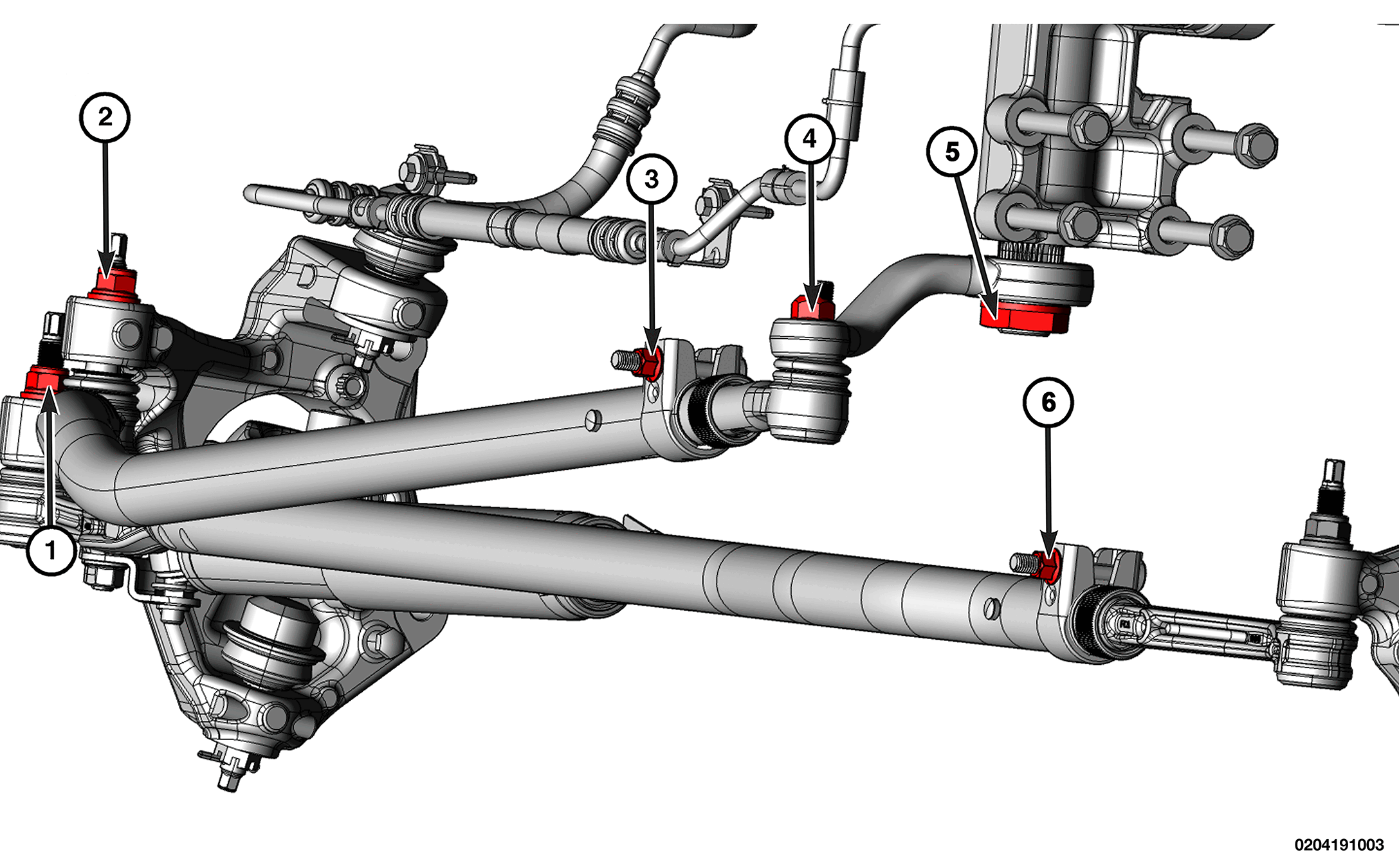

TORQUE SPECIFICATIONS - STEERING LINKAGE (1 OF 2)

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Tie Rod End Nut	40 N. m + 125° (30 Ft. Lbs. + 125°)	Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications.
2	Drag Link Outer Nut	40 N. m + 125° (30 Ft. Lbs. + 125°)	Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications.
3	Drag Link Adjuster Clamp	46 N. m (34 Ft. Lbs.)	-
4	Drag Link Inner Nut	39 N. m + 125° (29 Ft. Lbs. + 125°)	Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications.
5	Pitman Arm Nut	250 N. m (185 Ft. Lbs.)	Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications.
6	Tie Rod End Adjuster Clamp	46 N. m (34 Ft. Lbs.)	-

GC0205907

Courtesy of CHRYSLER GROUP, LLC

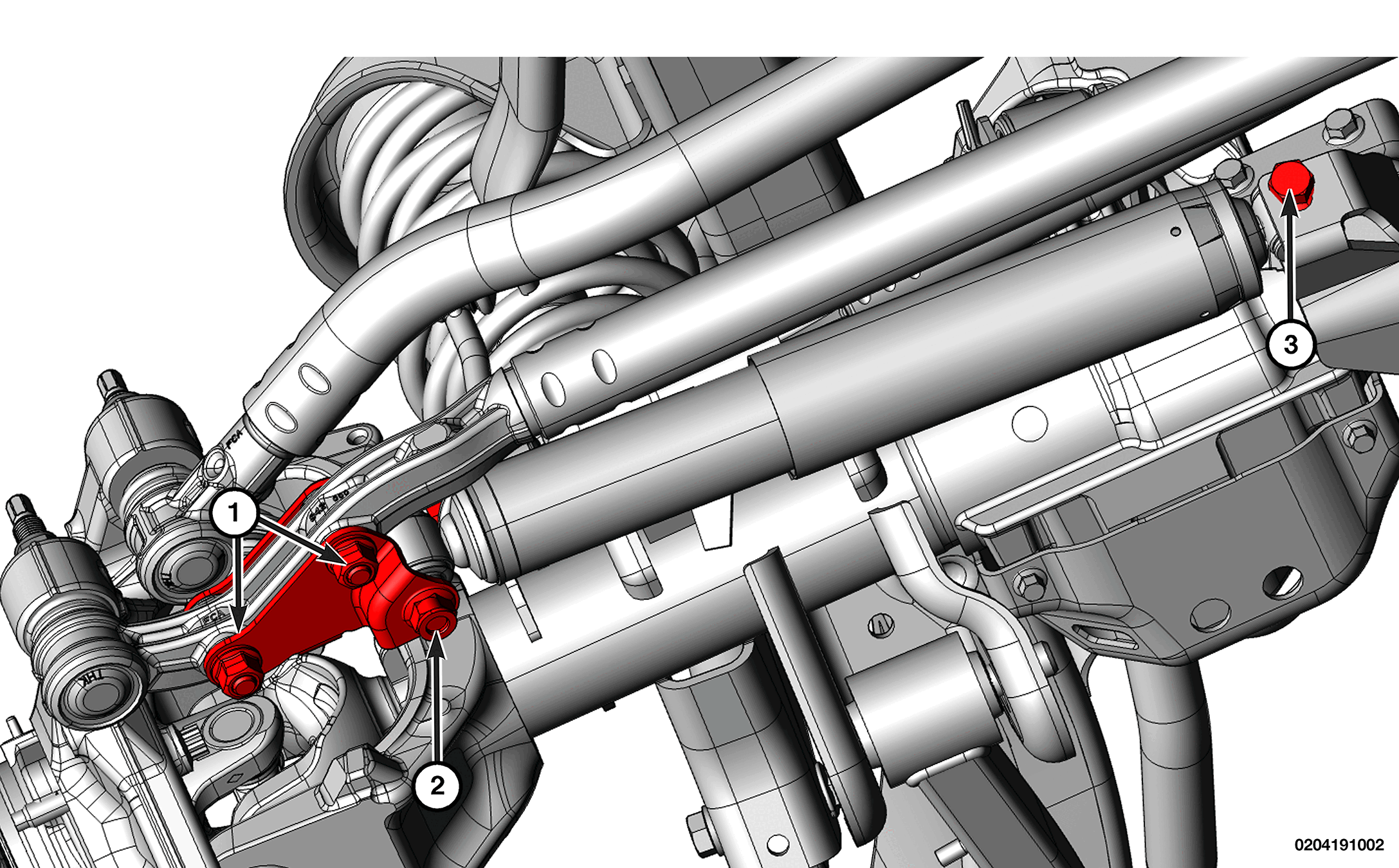

TORQUE SPECIFICATIONS - STEERING LINKAGE (2 OF 2)

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Steering Damper Bracket Nut	75 N. m (55 Ft. Lbs.)	-
2	Steering Damper Nut	75 N. m (55 Ft. Lbs.)	-
3	Steering Damper Bolt	68 N. m (50 Ft. Lbs.)	-
