Torque Specification

Courtesy of CHRYSLER GROUP, LLC

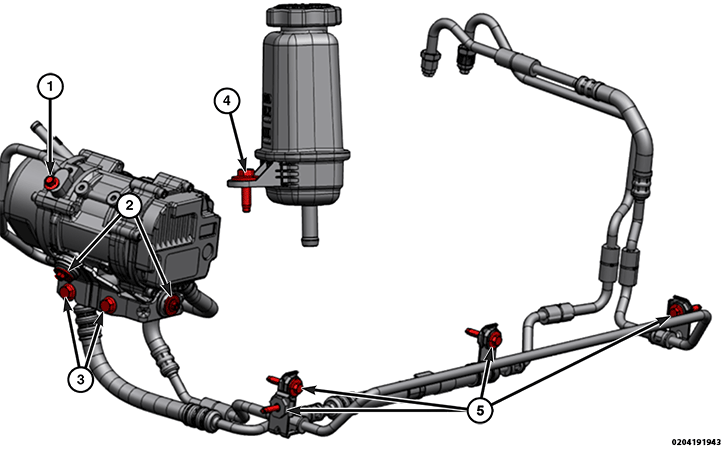

TORQUE SPECIFICATIONS - STEERING PUMP

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Pressure Line to Pump Bolt	20 N. m (15 Ft. Lbs.)	-
2	Power Steering Pump to Bracket Bolts	8 N. m (71 In. Lbs.)	-
3	Power Steering Pump Bracket Frame Bolts	29 N. m (21 Ft. Lbs.)	-
4	Power Steering Fluid Reservoir Bolt	8 N. m (71 In. Lbs.)	-
5	Power Steering Hose Routing Bracket Bolt	5 N. m (44 In. Lbs.)	-
