Fuel Level Sensor

REMOVAL

1. Remove fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

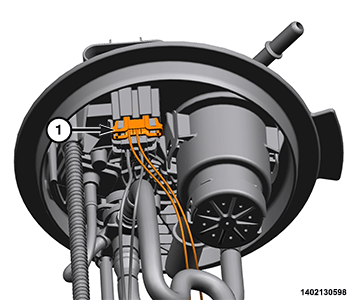

   1 - Fuel Level Sensor Wire Harness Connector

2. Disconnect the fuel level sensor wire harness connector from the fuel pump module.

   Courtesy of CHRYSLER GROUP, LLC

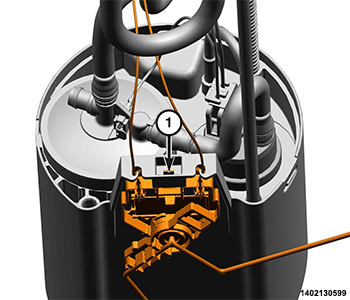

   1 - Fuel Level Sensor Retaining Tab

3. Disengage the fuel level sensor retaining tab from fuel pump module housing and slide the fuel level sensor upward, removing it from the fuel pump module.

INSTALLATION

1. Install fuel level sensor to fuel pump module housing and engage the fuel level sensor retaining tab.
2. Install the fuel level sensor wire harness connector.
3. Install fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL AND INSTALLATION  .
