Antenna, Remote Start: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Left side shown. Right side similar.

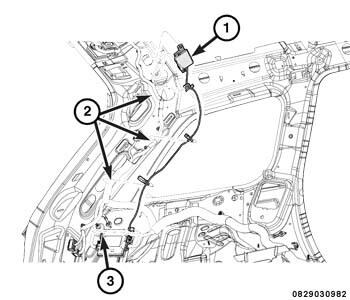

Install the Remote Start Receiver (1) to the body of the vehicle indicated.
Route the Remote Start Antenna and clip in place with the provided fasteners (2).
Connect the Remote Start Antenna to the Remote Frequency Hub (3) (RFHUB).

Courtesy of CHRYSLER GROUP, LLC

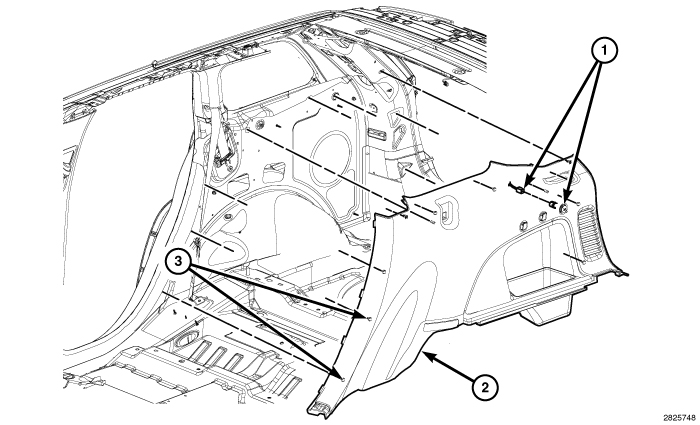

Position the quarter trim panel (2) back into the vehicle.
Position the front locating pin into the body and seat the push pin near the location pin fully.
Seat the clip at the top of the trim panel into the C-pillar first.
For the right side, seat the three front push pins (1).
For the left side, seat the two front push pins.
Seat the push pin at the rear of the quarter glass.
For the right side, connect the power outlet electrical connector (1).
For the left side, connect the flash light electrical connector and the power liftgate switch, if equipped.
Position the rear locating pin into the body and seat the remaining push pins.

Courtesy of CHRYSLER GROUP, LLC

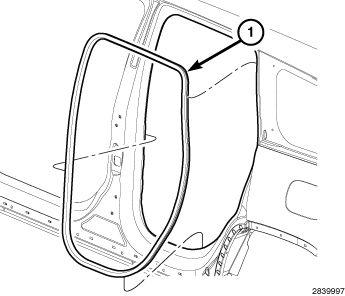

Position the door weatherstrip (1) back and seat fully.
Install the rear door scuff plate. Refer to INSTALLATION .
Install the D-pillar trim. Refer to PANEL, D-PILLAR TRIM, INSTALLATION .
Install the load floor Refer to LOAD FLOOR, FOOTWELL, INSTALLATION .
Connect the negative battery cable to the negative battery post.
