Sensor, Differential Pressure: Installation: 6.4L

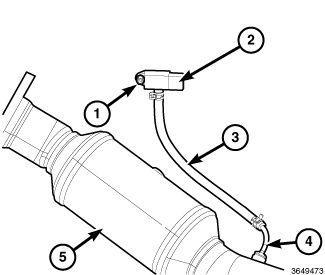

GC0152255Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the Differential Pressure Sensor (DPS) metal tubing fitting (4).
  2. Install the DPS (1) to the bracket.
  3. Install the DPS and bracket in vehicle.
  4. Connect the DPS hose.
  5. If equipped, Install the transmission skid plate.
  6. Lower the vehicle.
  7. Connect the negative battery cable.
