Sensor, Exhaust Temperature: Description
- The Exhaust Gas Temperature Sensor (EGT) operates as a typical two wire 5-Volt sensor. It sends a signal to the Powertrain Control Module (PCM) monitoring the temperature of the exhaust gases in the Diesel Particulate Filter.
- The EGT Sensor are located:
- 1/1 is located on the outlet of the exhaust manifold
- 1/2 is located on the inlet of the Diesel Oxidation Catalyst (DOC)/Diesel Particulate Filter (DPF)

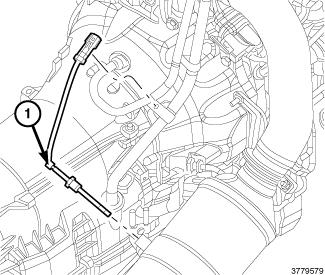

- Catalyst Exhaust Gas Temperature Sensor (1) is located between the Diesel Oxidation Catalyst (DOC) and the Diesel Particulate Filter (DPF)
