Engine Block: FLEXPLATE: Installation

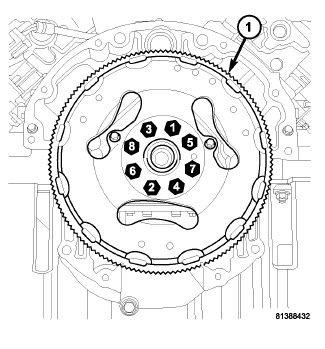

Fig 1: Flex Plate Loosening/Tightening Sequence
GC0095614Courtesy of CHRYSLER GROUP, LLC
  1. Position the flexplate (1) onto the crankshaft and install the bolts finger tight.
  2. Using the sequence shown, tighten the flexplate retaining bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
    CAUTION:

    Do not use an impact socket or a thick walled socket when removing or installing the flexplate retaining bolts, damage to the crankshaft, internal engine or the transmission may occur.

  3. Install the transmission. Refer to INSTALLATION .
