Capacitor, Ignition: Removal: 5.7L/6.4L

The ignition capacitors are attached at the rear of the cylinder heads.

1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover.

   Courtesy of CHRYSLER GROUP, LLC

3. Remove the ignition capacitor wire harness connectors.

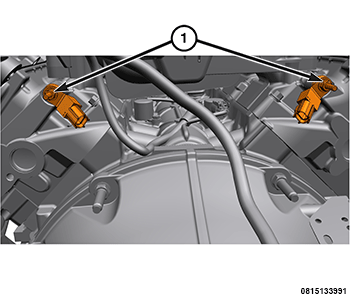

4. Remove the fasteners (1) and remove the ignition capacitors.
