Left Side
 Courtesy of CHRYSLER GROUP, LLC
|

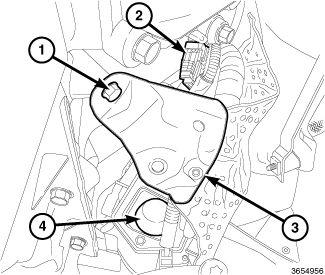

- Remove the bolt (1) the secures the starter heat shield (3) to the engine block and position the heat shield aside.
 Courtesy of CHRYSLER GROUP, LLC
|

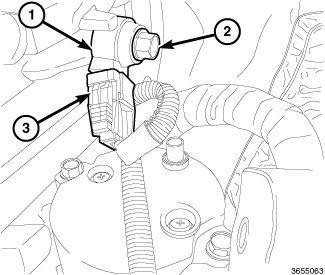

- Remove the bolt (2) that secures the knock sensor (1) to the engine block.
- Disconnect the wire harness connector (3) from the knock sensor.
