Insulator, Engine Mount, Right: Installation
WARNING: This page is about a different variant/trim than selected.
- If removed, install the right engine mount bracket to the engine block with four bolts and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS
.

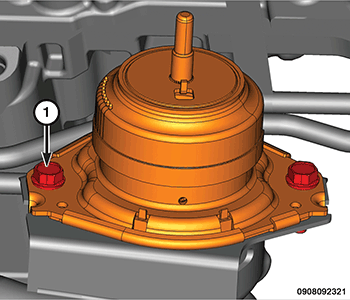

- Install the right engine mount isolator to the frame with two bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS
.
- Align the tab on the isolators with the notch in the engine mount brackets and lower the engine so the weight is resting on the isolators.
- Install the left and right engine mount nuts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS
.
- Install the engine mount heat shield to both the left and right engine mounts, then tighten the bolts (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Install the upper intake manifold and insulator. Refer to MANIFOLD, INTAKE, INSTALLATION .
- Connect the negative battery.
