Cover(S), Engine Timing: Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

Clean the engine timing cover and engine block surface.
NOTE:
Always install a NEW gasket when servicing the engine timing cover.
Verify that the engine timing cover slide bushings (1) remain located in the engine timing cover.

Courtesy of CHRYSLER GROUP, LLC

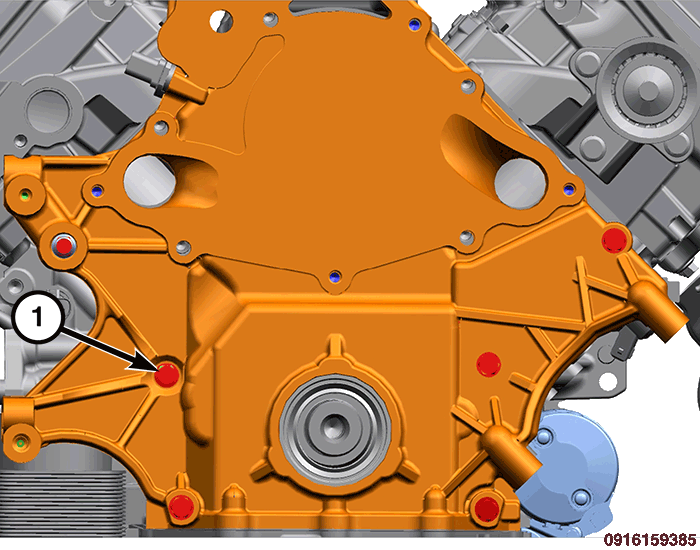

Using a new gasket, install the engine timing cover and tighten the retaining bolts (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

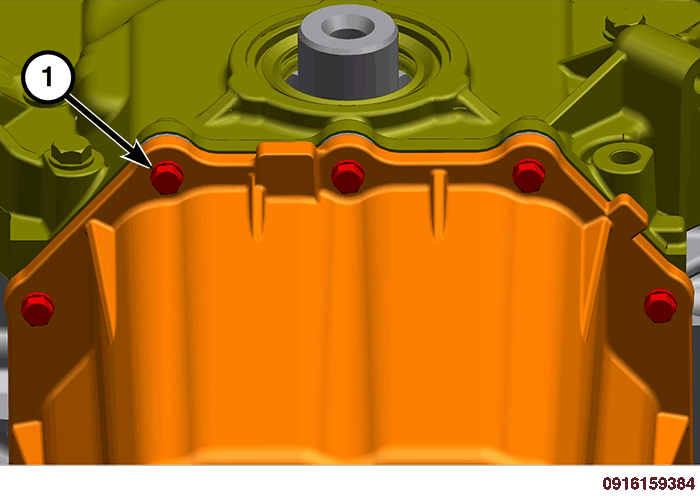

Install the five front oil pan to timing cover bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Install the vibration damper onto the crankshaft. Refer to DAMPER, VIBRATION, INSTALLATION .
Install the generator. Refer to 6.4L .
Install the A/C compressor. Refer to COMPRESSOR, A/C, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Connect the camshaft position sensor wire harness connector (1).
Install the water pump. Refer to 5.7L/6.4L .
Install the throttle body. Refer to 6.4L .
Change the engine oil filter and fill the crankcase with the specified type and amount of engine oil. Refer to STANDARD PROCEDURE - ENGINE OIL SERVICE .
Connect the negative battery cable.
Start the engine and check for leaks.
