Bottle, Coolant Recovery: Installation: 6.2L

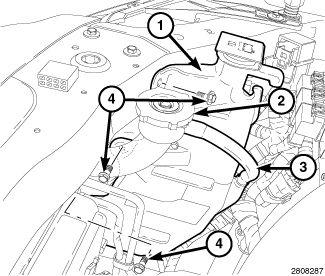

GC0145991Courtesy of CHRYSLER GROUP, LLC
  1. Position the recovery bottle (1) into the vehicle.
  2. Install the mounting bolts (4) and tighten to 10 N.m (89 in. lbs.).
  3. Install the overflow tube (3) to the radiator filler neck (2).
