3.0L Diesel

Courtesy of CHRYSLER GROUP, LLC

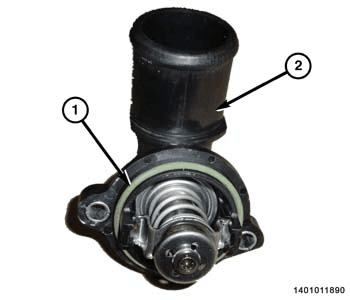

Install a NEW O-ring seal (1) on the thermostat housing assembly (2).

Courtesy of CHRYSLER GROUP, LLC

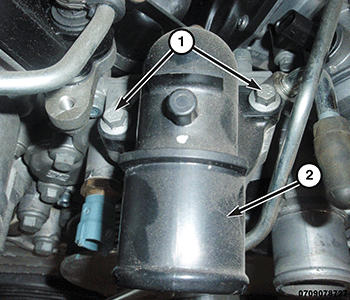

Install the thermostat housing assembly (2). Tighten the bolts (1) to 11 N.m (8 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC

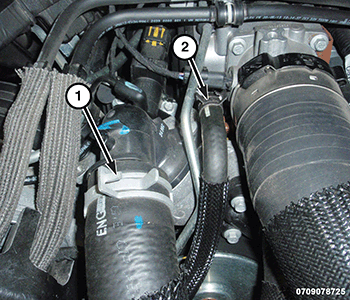

Install the coolant hose (1) onto the thermostat housing.
Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION .
Connect the negative battery cable.
Start the engine and check for leaks.

Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
