Heater, Engine Block: Removal: 3.2L

  1. Remove the generator

    Refer to GENERATOR, REMOVAL .

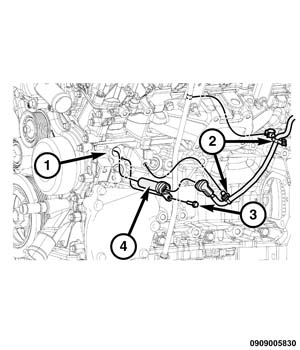

    GC0159337Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the power cord plug (2) from engine block heater (4).
  3. Remove the bolt (3) and the engine block heater (4).
