948TE Automatic Transmission (Service Information): Installation: 3.2L

WARNING:

Hoisting and jack lift points provided in this service information are for a complete vehicle. When the transaxle is removed, the center of gravity will shift to the rear of the vehicle, possibly creating an unstable condition. Place safety stands under the rear frame rails behind the rear axle to stabilize the vehicle. Personal injury may result if safety stands are not used.

NOTE:

If installing a new transmission, remove the shipping cap from the vent.

  1. Install the torque converter to the transmission.
  2. While guiding the transmission past obstacles, jack the transmission upward until the engine and the transmission are in line.
  3. Push the bell housing against the engine block until the guide pins engage.
    CAUTION:

    Ensure that the transaxle bell housing and the engine block are flush before installing the bolts. Never utilize the mounting bolts to draw the transaxle to the engine.

  4. Install the bolt to hold the engine oil pan and exhaust bracket to the bellhousing and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0159771Courtesy of CHRYSLER GROUP, LLC
  5. Install the bolts (1) to hold the engine block and oil pan to the bellhousing behind the catalytic converter and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  6. Install the bolts to hold the engine block and oil pan to the bellhousing next to the differential housing and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  7. Install the left lower load beam. Refer to LOAD BEAM, LOWER, INSTALLATION .
  8. Install the rear engine mount isolator. Refer to INSULATOR, ENGINE MOUNT, REAR, INSTALLATION .
    GC0159581Courtesy of CHRYSLER GROUP, LLC
  9. Place a wooden block (1) between the load beam and the transmission, lower the jack and high stand until the transmission rests on the wooden block.
  10. Remove the high stand and transmission jack from under the vehicle.
    GC0160135Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    It is essential that correct length bolts be used to attach the converter to the driveplate. Failure to follow this caution may result in transmission damage.

  11. Through the access door opening, install the bolts (1) that hold the flexplate to the torque converter and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  . Rotate the crankshaft to bring each set of bolts into view through the access door.
    GC0159240Courtesy of CHRYSLER GROUP, LLC
  12. Install the access door (2) in the splash shield on the bellhousing.
    GC0160129Courtesy of CHRYSLER GROUP, LLC
  13. Install the starter bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS - GAS ENGINE .
    GC0159945Courtesy of CHRYSLER GROUP, LLC
  14. Connect the transmission oil cooler lines (1) in position on the transmission.
  15. If equipped, install the Power Transfer Unit (PTU). Refer to INSTALLATION .
  16. Install the left and right halfshafts. Refer to INSTALLATION .
  17. Remove the safety stands under the rear frame rails behind the rear axle and lower the vehicle.
    GC0159716Courtesy of CHRYSLER GROUP, LLC
  18. Install upper bolts (1) to hold the transmission bellhousing to the engine block located behind the main engine wire harness and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0159174Courtesy of CHRYSLER GROUP, LLC
  19. Install the upper bolt (1) to hold the wire harness bracket and transmission bellhousing to the engine block and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0159811Courtesy of CHRYSLER GROUP, LLC
  20. Place the transmission mount adaptor block (4) in position on the transmission.
  21. Install the bolts (3) and hidden bolts (2) to hold the transmission mount adaptor block (4) to the transmission and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0159835Courtesy of CHRYSLER GROUP, LLC
  22. Install the ground cable and bolt (1) to the transmission end cover and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  23. Position a floor jack under the transmission.
    GC0159581Courtesy of CHRYSLER GROUP, LLC
  24. Raise the transmission enough to remove the wooden block (1) from between the transmission end cover and the frame rail load beam.
    GC0159811Courtesy of CHRYSLER GROUP, LLC
  25. Install the bolts (1) to hold the upper transmission mount to the adaptor block (4) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS - 2.0L or TORQUE SPECIFICATIONS - 3.2L .
  26. Lower and remove the floor jack.
    GC0159235Courtesy of CHRYSLER GROUP, LLC
  27. Connect the transmission solenoid connector (1) into transmission connector and rotate the lock lever clockwise.
    GC0160099Courtesy of CHRYSLER GROUP, LLC
  28. Press the shift cable housing (2) into the mount bracket (1) on the transmission.
    GC0159736Courtesy of CHRYSLER GROUP, LLC
  29. Snap the shift cable end (2) in position on the manual lever on the transmission.
    GC0159644Courtesy of CHRYSLER GROUP, LLC
  30. Place the ground cable (1) in position and tighten the bolt to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0159257Courtesy of CHRYSLER GROUP, LLC
  31. Connect the wire harness connector (1) to the TCM.

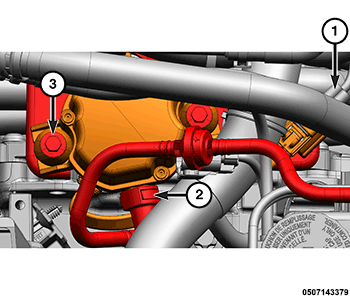

    GC0187156Courtesy of CHRYSLER GROUP, LLC
  32. Place the vacuum pump in position on the mount bracket.
  33. Install the nuts (3) to hold the vacuum pump to the mount bracket and tighten securely.
  34. Connect the vacuum line (2) to the vacuum pump.
  35. Connect the wire harness connector (1) onto the vacuum pump.
  36. Install the battery tray. Refer to TRAY, BATTERY, INSTALLATION .
  37. Install the power distribution center. Refer to CENTER, POWER DISTRIBUTION (PDC), INSTALLATION .
  38. Install the PCM. Refer to MODULE, POWERTRAIN CONTROL (PCM), INSTALLATION .
  39. Fill the transmission to the proper level with the specified fluid. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
  40. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  41. Install NEW  rivets at the lower outboard front fascia to wheel well liners.
  42. Install the front wheels. Refer to INSTALLATION .
  43. Install the battery. Refer to BATTERY, INSTALLATION .
  44. If transmission is replaced, program the Vehicle Identification Number (VIN) into the Transmission Control Module (TCM).
    NOTE:

    Only perform the Valve Body Solenoid Learn procedure if the valve body and/or the TCM was replaced during a repair. Do not perform this procedure if the repair did not require the valve body and/or TCM to be replaced. Do not perform this procedure if the transmission is being replaced.

  45. If valve body or the TCM was replaced, perform Valve Body Solenoid Learn procedure.
  46. If transmission is replaced or internal repairs were made, perform Transmission Verification Test-948TE. Refer to TRANSMISSION VERIFICATION TEST - 948TE 9HP48 .
  47. Road test the vehicle to verify the repair.
