Removal And Installation: Installation

WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Propeller shaft removal is a two-person operation. Never allow propeller shaft to hang from the center bearing, or while only connected to power transfer unit (PTU) or rear driveline module flanges. A helper is required. If a propshaft section is hung unsupported, damage may occur to the joint, boot, and center bearing from over-angulation. This may result in driveline vibrations.

NOTE:

Lightly apply grease to the splines prior to installation.

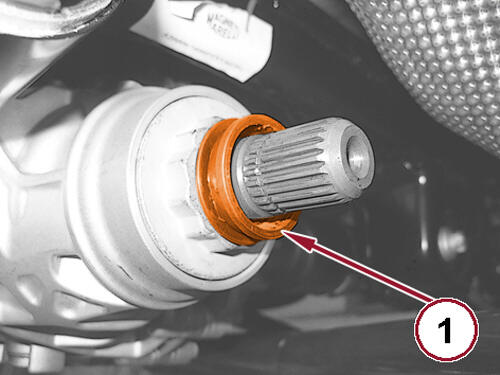

GC0163742Courtesy of CHRYSLER GROUP, LLC
  1. Install a NEW  dust seal (1) on the pinion shaft of the Rear Driveline Unit (RDU).

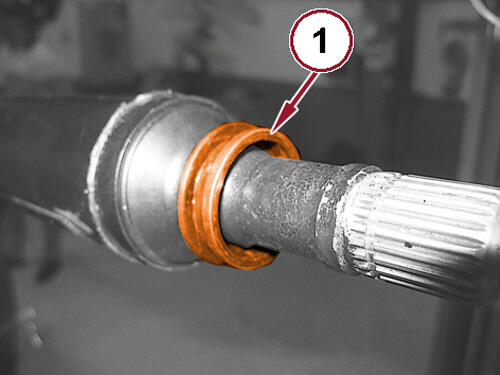

    GC0166150Courtesy of CHRYSLER GROUP, LLC
  2. Install a NEW  dust seal (1) on the front shaft of the driveshaft.

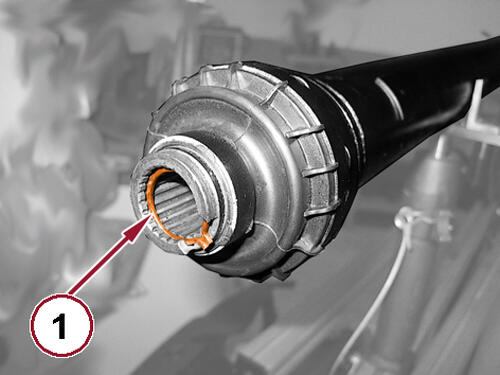

    GC0162973Courtesy of CHRYSLER GROUP, LLC
  3. Install a NEW  snap ring (1) in the drive shaft.

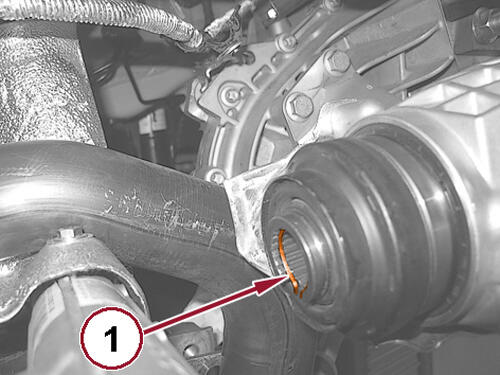

    GC0165983Courtesy of CHRYSLER GROUP, LLC
  4. Install a NEW  snap ring (1) in the Power Transfer Unit (PTU).
    NOTE:

    Protect the driveshaft coating with a suitable duct tape to prevent any scratches.

  5. Raise the driveshaft into the vehicle positioning the front of the shaft above the front cross member and the steering gear.

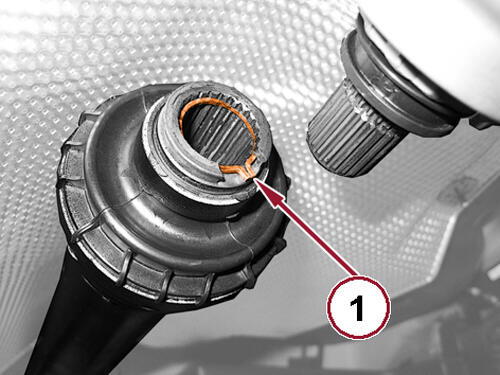

    GC0165620Courtesy of CHRYSLER GROUP, LLC
  6. Connect the driveshaft (1) to the pinion of the RDU, verify the snap ring is seated in the groove of the pinion shaft.

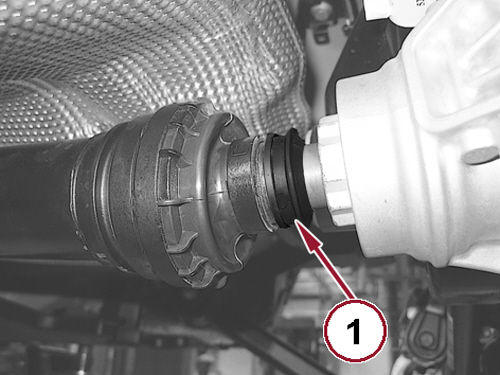

    GC0165188Courtesy of CHRYSLER GROUP, LLC
  7. Position the new dust cover (1) over the joint at the rear of the driveshaft.

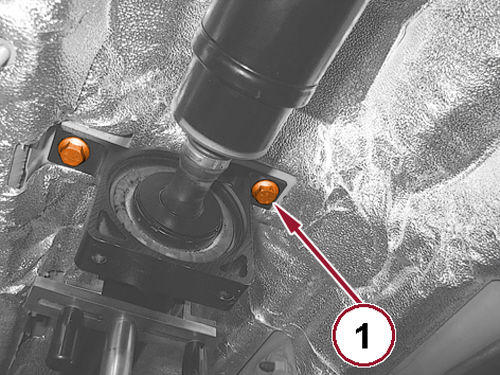

    GC0166190Courtesy of CHRYSLER GROUP, LLC
  8. Loosely install the NEW  bolts (1) for the center support bracket.

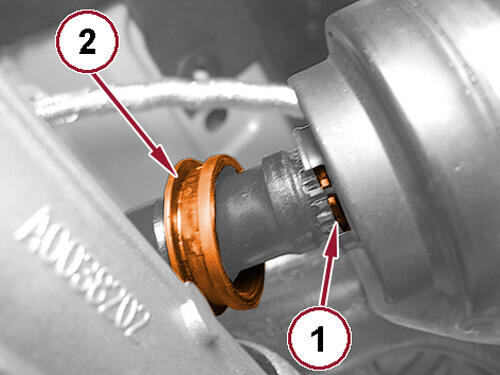

    GC0163882Courtesy of CHRYSLER GROUP, LLC
  9. Connect the driveshaft (1) to PTU, verify the snap ring is (1) seated in the groove of the driveshaft.
  10. Position the new dust cover (2) over the joint at the front of the driveshaft.
    GC0165947Courtesy of CHRYSLER GROUP, LLC
  11. Tighten the center support bracket bolts (1) to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
  12. Remove the cable ties holding the wood to the driveshaft and remove the wood brace.
  13. Install the driveshaft heat shield. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  14. Remove the protective tape from the driveshaft.
