Smart Lighting Module (SLM)

REMOVAL

1. Remove the front lamp unit. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Smart Lighting Module (SLM)

2. Remove the fasteners securing the Smart Lighting Module (SLM) to the front lamp unit.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Wire Harness Connector

3. Disconnect the wire harness connector from the SLM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

NOTE:

Courtesy of CHRYSLER GROUP, LLC

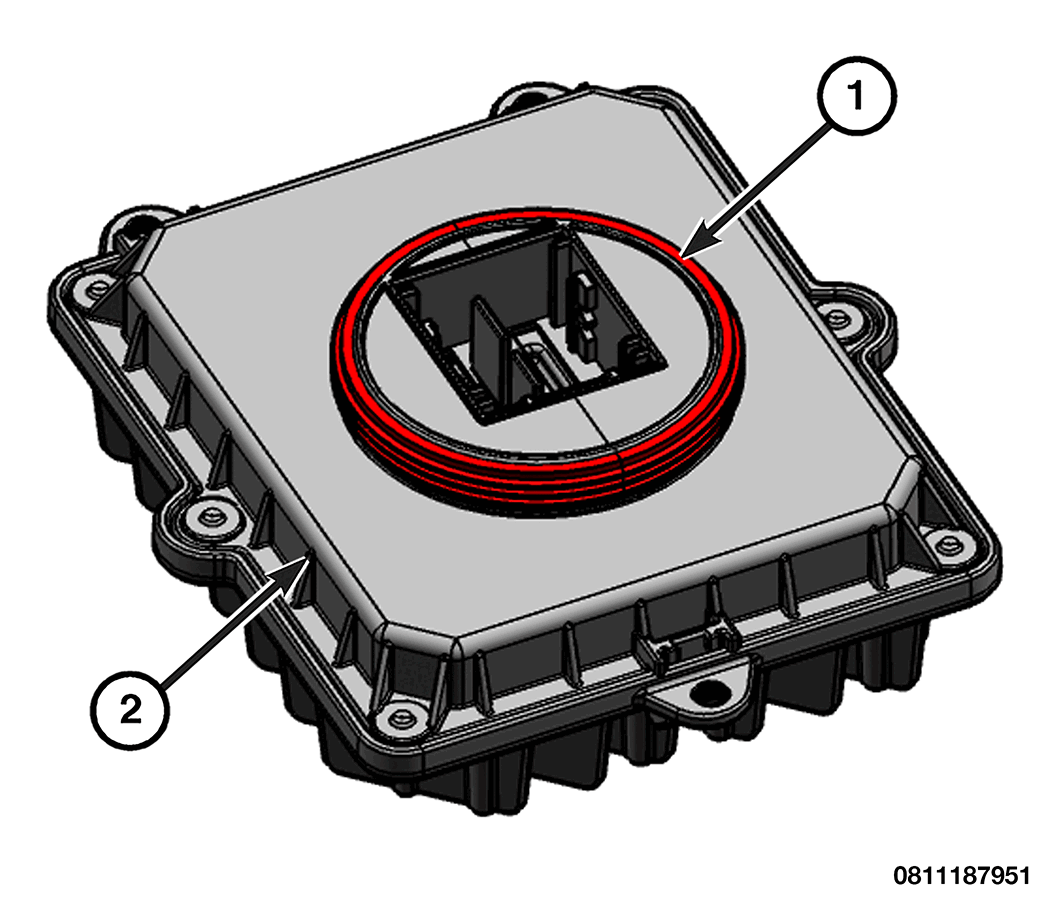

1 - Smart Lighting Module (SLM) Seal

2 - Smart Lighting Module (SLM)

If replacing the module, verify the seal is installed and replace and screws.

• Tighten the fasteners securely.
