Sensor, Fuel Pressure: Installation

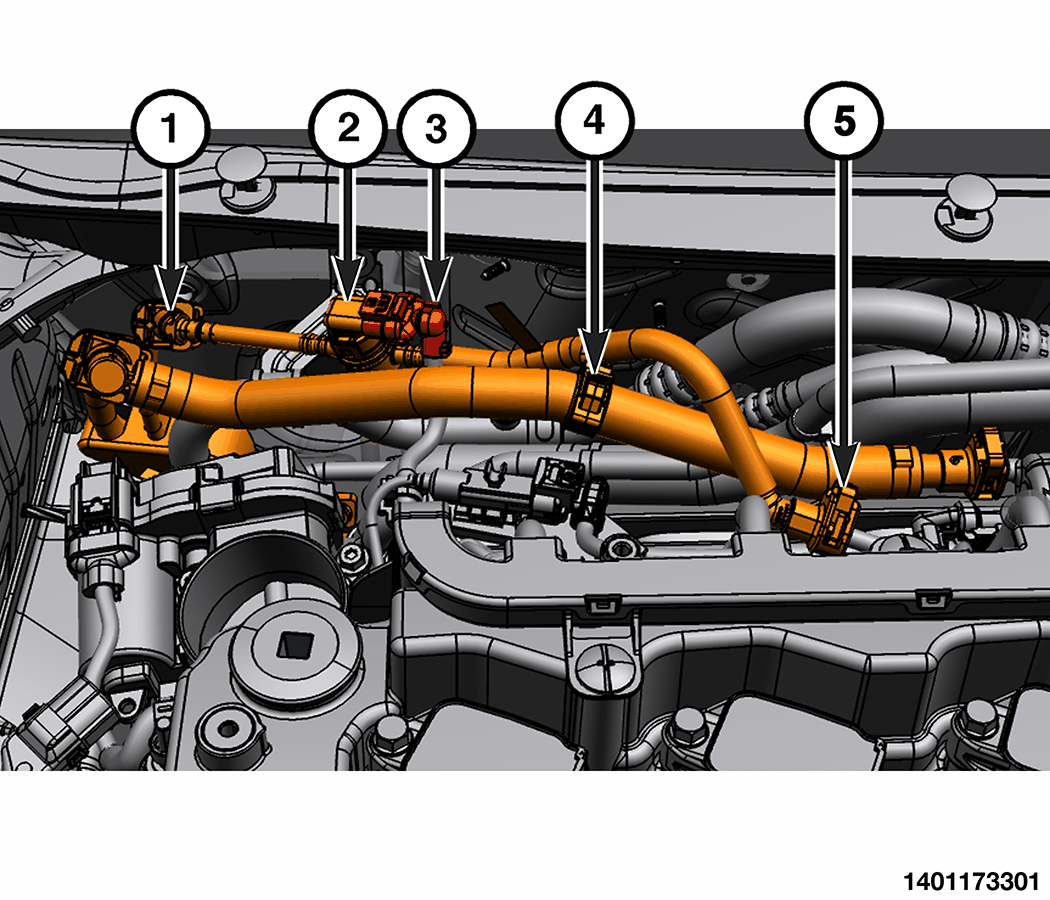

- Position the fuel line and connect the fuel supply line quick connectors (1, 5). Refer to QUICK-CONNECT FITTINGS .
- Install the retainer (4) securing the fuel line.
- Connect the Fuel Pressure Sensor wire harness connector (3).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Start the engine and check for leaks.
- Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
