2.4L Cooling System: Engine: Thermostat: Installation: 2.4L

CAUTION:

The Thermostat and housing is serviced as an assembly. Do not remove the thermostat from the housing. Damage to the thermostat may occur.

GC0163135Courtesy of CHRYSLER GROUP, LLC
  1. Clean the mating surfaces on the cylinder head and thermostat housing.

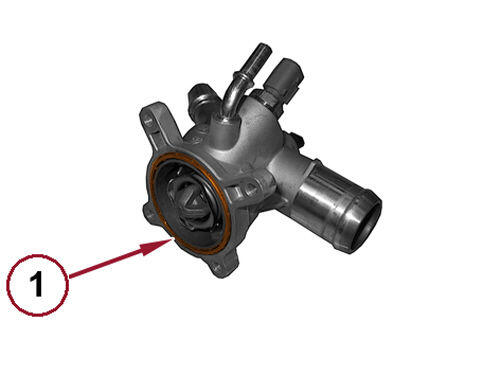

  2. Install a NEW  thermostat housing gasket (1).
    GC0177082Courtesy of CHRYSLER GROUP, LLC

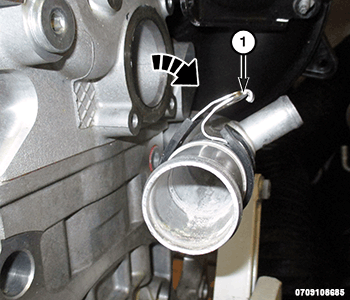

  3. Rotate the loop clamp (1) clockwise at least 45° away from the thermostat mounting surface.
    GC0176939Courtesy of CHRYSLER GROUP, LLC

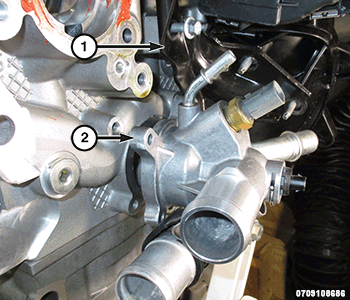

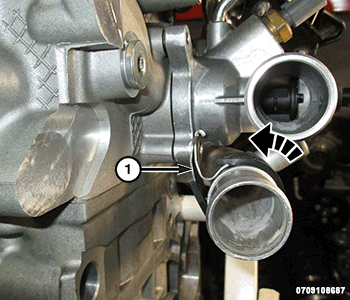

  4. Pull the intake manifold upper support bracket (1) slightly away from the engine and install the thermostat housing (2).
    GC0176995Courtesy of CHRYSLER GROUP, LLC
  5. Rotate the loop clamp (1) back into position against the thermostat housing flange.
    GC0176959Courtesy of CHRYSLER GROUP, LLC

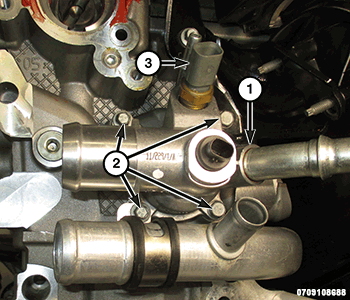

  6. Install the four thermostat housing bolts (2) hand tight.
  7. If removed, install the coolant temperature sensor (3) to the thermostat housing (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS - 2.4L  .
    GC0171601Courtesy of CHRYSLER GROUP, LLC

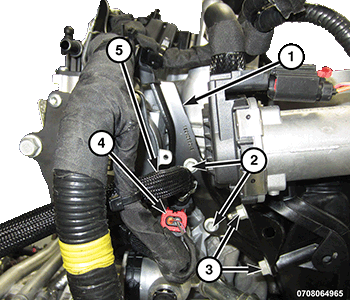

  8. Install the two bolts (2) to the intake manifold upper support bracket (1) hand tight.
  9. Tighten the intake manifold upper support bracket nuts (3) to the proper torque specification. Refer to TORQUE SPECIFICATIONS - 2.4L  .
  10. Tighten the intake manifold upper support bracket bolts (2) and the three other previously installed thermostat housing bolts in a criss-cross pattern to the proper torque specification. Refer to TORQUE SPECIFICATIONS - 2.4L  .
  11. Connect and lock the coolant temperature sensor harness connector (4).
  12. Install the degas hose (5) to the thermostat housing and connect the quick-connect fitting.
    GC0165638Courtesy of CHRYSLER GROUP, LLC

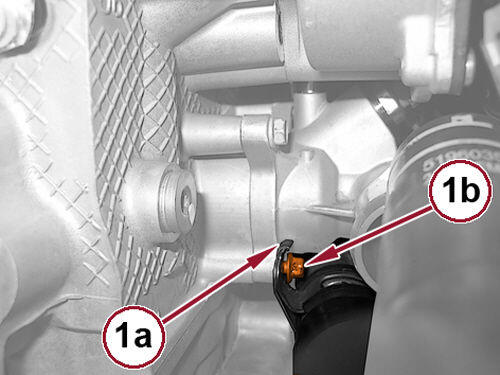

  13. Bend the loop clamp end tab (1a) to secure the thermostat housing bolt (1b).
    GC0172072Courtesy of CHRYSLER GROUP, LLC

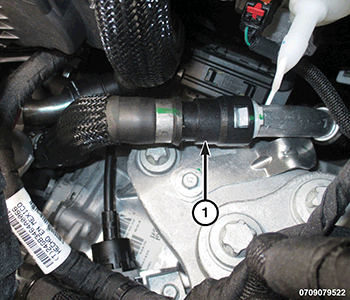

  14. Install the heater core inlet hose (1) to the thermostat housing and engage the quick-connect coupling.
    GC0173320Courtesy of CHRYSLER GROUP, LLC
  15. Connect the heater core return hoses and engage the quick-connect coupling (1).
    GC0159621Courtesy of CHRYSLER GROUP, LLC

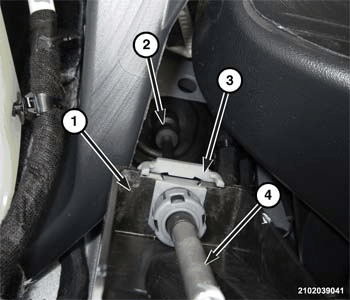

  16. Install the shift cable (4) to the shift cable bracket (1) and engage the lock (3).
  17. Install the engine vacuum pump. Refer to PUMP, VACUUM, INSTALLATION .
    GC0171629Courtesy of CHRYSLER GROUP, LLC

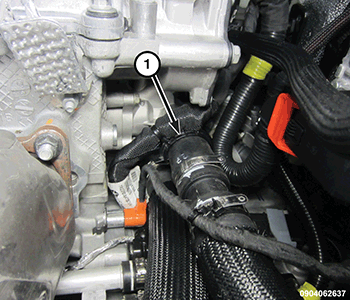

  18. Install the upper radiator inlet hose (2) to the thermostat housing with the CLIC E®  type clamp using (special tool #10288, Pliers, Hose Clamp).
    GC0171271Courtesy of CHRYSLER GROUP, LLC
  19. Engage the wire harness retainer (1) to the upper radiator inlet hose at the thermostat housing.
  20. Install the Power Distribution Center (PDC). Refer to CENTER, POWER DISTRIBUTION (PDC), INSTALLATION .
  21. Install the battery tray and battery. Refer to TRAY, BATTERY, INSTALLATION .
  22. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  23. Remove the support and lower the vehicle.
  24. Fill the cooling system. Refer to COOLING - STANDARD PROCEDURE .
  25. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  26. Run the engine until it reaches normal operating temperature. Check the cooling system for leaks and correct fluid level. Refer to COOLING - STANDARD PROCEDURE .
  27. Install the engine cover.
