Front Heat Shield

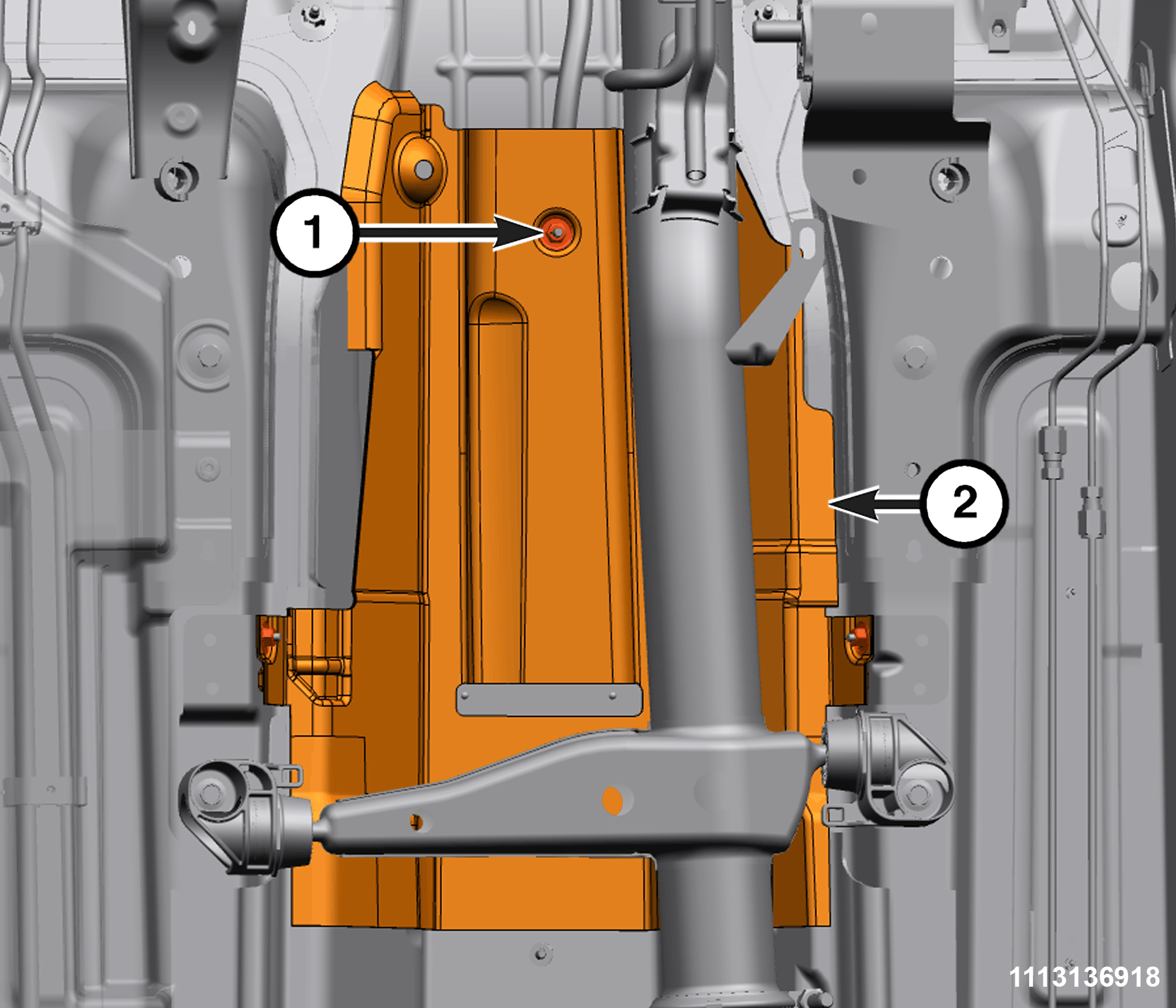

GC0186960Courtesy of CHRYSLER GROUP, LLC
  1. Install the front heat shield (2) and securely tighten the fasteners (1).
  2. Install the propeller shaft. Refer to DRIVESHAFT, INSTALLATION .
