Module-HVAC C1 (Standard) Connector End View (D3828A)

Harness-Family: HVAC_Jumper

Color: GRAY

Gender: FEMALE

Part Number: 13530010_13530008

Part Description: Not Available

Connector No: D3828A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Hvac C1 Connector End View (Standard)

GCWD1090864

Courtesy of CHRYSLER

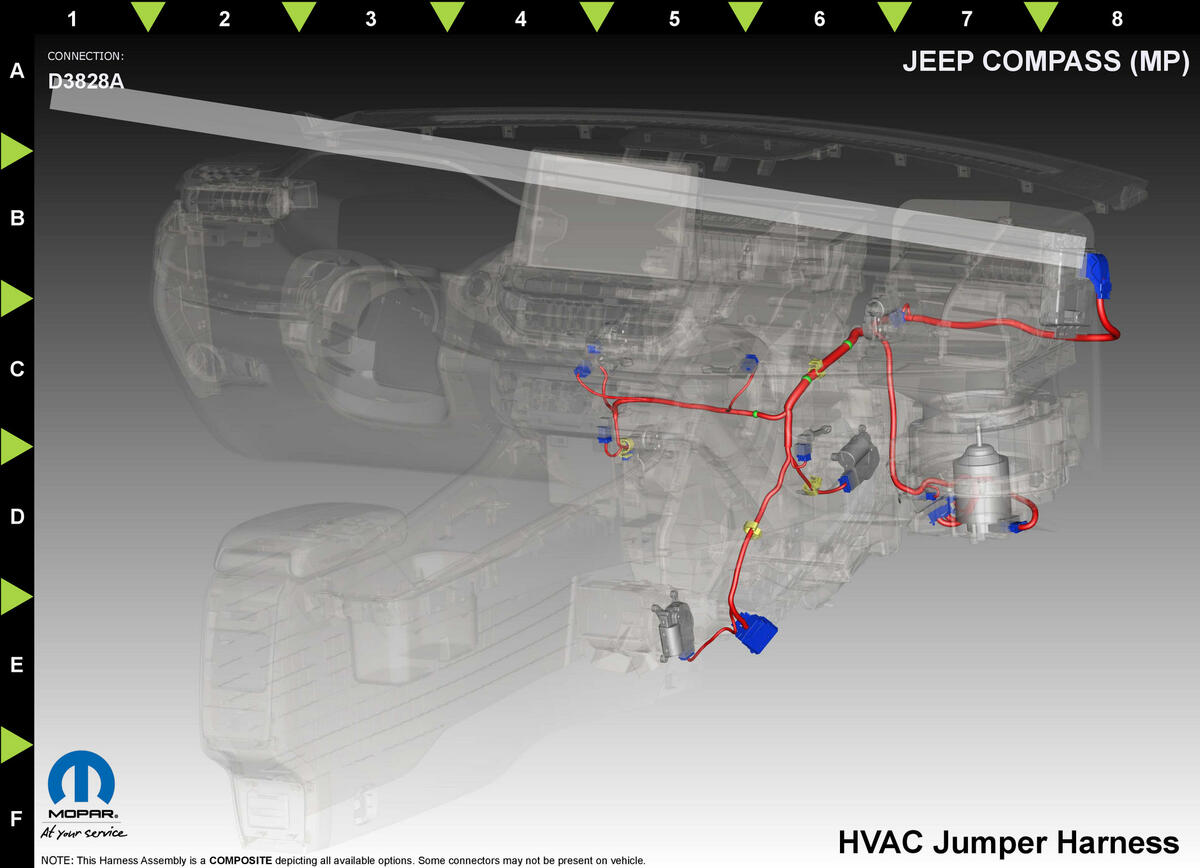

Fig 2: Module-Hvac C1 Component Location (Standard)

GCWD1294140

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F944

PK/GN

0.35

FUSED IGNITION

N/A

2

A910

RD

0.50

FUSED B(+)

N/A

4

D101

DG

0.35

CAN IHS (+)

N/A

5

D102

WH

0.35

CAN IHS (-)

N/A

6

Z913

BK

0.35

GROUND

N/A

7

C65

DB/BU

0.35

RIGHT MODE DOOR DRIVER 1

N/A

8

C139

DB/WH

0.35

LEFT BLEND DOOR DRIVER 2

N/A

9

C137

DB/GN

0.35

LEFT BLEND DOOR DRIVER 1

N/A

10

C27

BU/WH

0.50

A/C COMPRESSOR CONTROL

N/A

15

C56

DB/BU

0.35

BLOWER CONTROL

N/A

16

C229

DB

0.35

BLOWER MOTOR RETURN

N/A

17

C66

DB/OG

0.35

MODE DOOR COMMON DRIVER

N/A

18

C266

OG/DB

0.35

MODE DOOR DRIVER

N/A

19

C134

OG/GY

0.35

RIGHT PANEL TEMPERATURE SENSOR SIGNAL

N/A

20

C162

BG/GY

0.35

LEFT PANEL TEMPERATURE SENSOR SIGNAL

N/A

21

C21

DB/GN

0.35

EVAPORATOR TEMPERATURE SENSOR SIGNAL

N/A

22

C235

BU/BG

0.35

MODE DOOR SIGNAL

N/A

23

C211

BU/YE

0.35

POWER SUPPLY

N/A

24

C233

BG/DB

0.35

LEFT BLEND DOOR SIGNAL

N/A

25

C34

DB/BU

0.35

COMMON DOOR DRIVER

N/A

26

C140

DB/YE

0.35

OUTSIDE AIR INLET DRIVE

N/A

27

C141

DB/DG

0.35

RECIRCULATION AIR INLET DRIVE

N/A

28

C130

OG/BU

0.50

RIGHT FLOOR TEMPERATURE SENSOR SIGNAL

N/A

29

C164

BG/DB

0.50

LEFT FLOOR TEMPERATURE SENSOR SIGNAL

N/A

30

C919

BU/BK

0.35

TEMP SNSR COMMON RTN

N/A

31

C224

OG/BG

0.35

RIGHT BLEND DOOR SIGNAL

N/A

32

C245

BU/GY

0.35

RIGHT MODE DOOR SIGNAL

N/A

33

C144

DB/BU

0.35

RECIRC DOOR SIG

N/A

34

C265

BU/DB

0.35

RIGHT MODE DOOR DRIVER 2

N/A

35

C138

DB/BG

0.35

RIGHT BLEND DOOR DRIVER 2

N/A

36

C136

DB/GY

0.35

RIGHT BLEND DOOR DRIVER 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
