Shock Absorbers

Courtesy of CHRYSLER GROUP, LLC

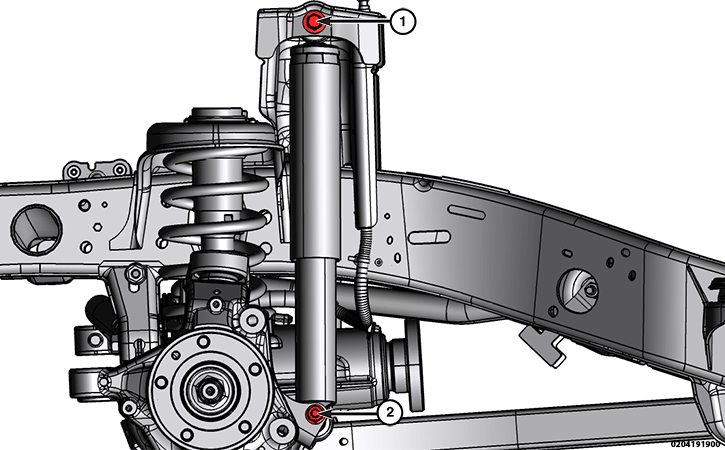

SHOCK ABSORBERS

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Shock Absorber Upper Bolt	140 N. m (103 Ft. Lbs.)	-
2	Shock Absorber Lower Bolt	100 N. m (77 Ft. Lbs.)	-
