Driver Alert Lighting Module

REMOVAL

1. Remove the left silencer panel. Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .
   NOTE:

   Left Hand Drive (LHD) vehicle shown, Right Hand Drive (RHD) vehicle similar.

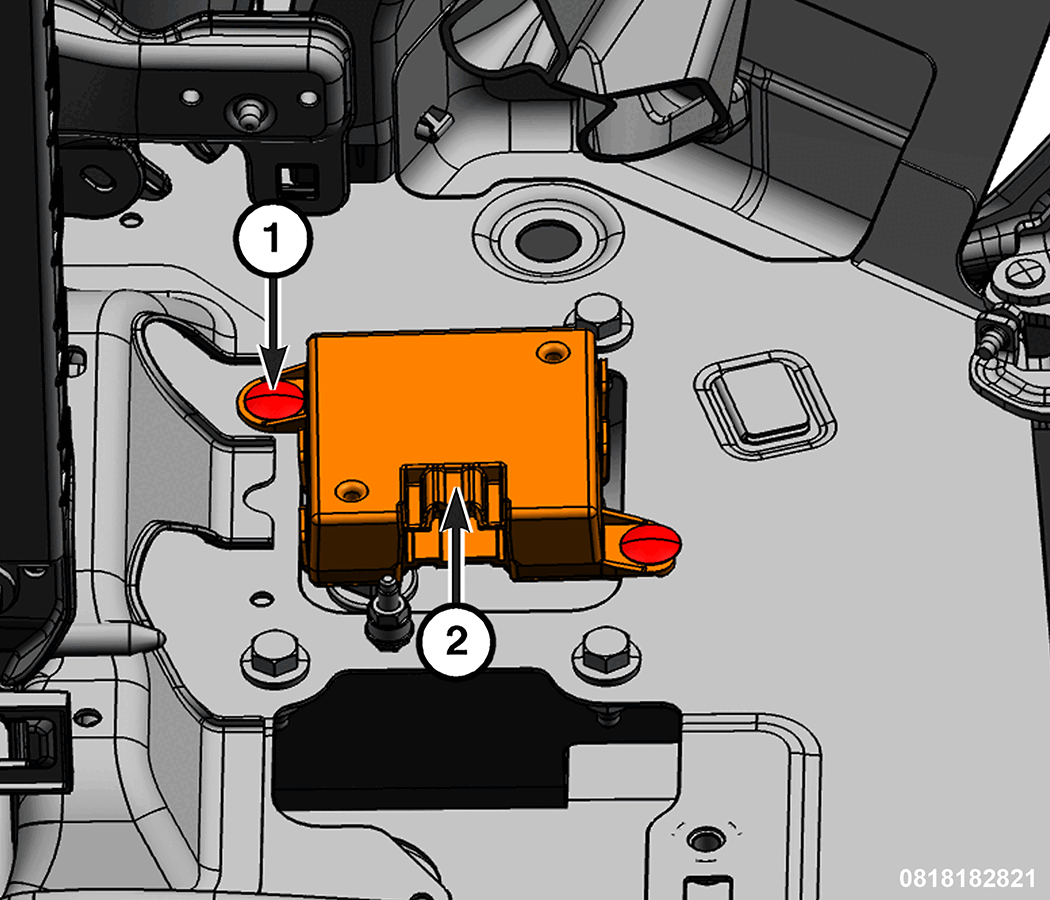

2. Remove the fasteners securing the Driver Alert Light Module (DALM) to the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Driver Alert Light Module (DALM)

3. Disconnect the wire harness connector from the DALM then remove the DALM from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
