Central Vision Park Assist Module: Notes

REMOVAL

1. Remove the right instrument panel silencer panel. Refer to PANEL, SILENCER, REMOVAL AND INSTALLATION .

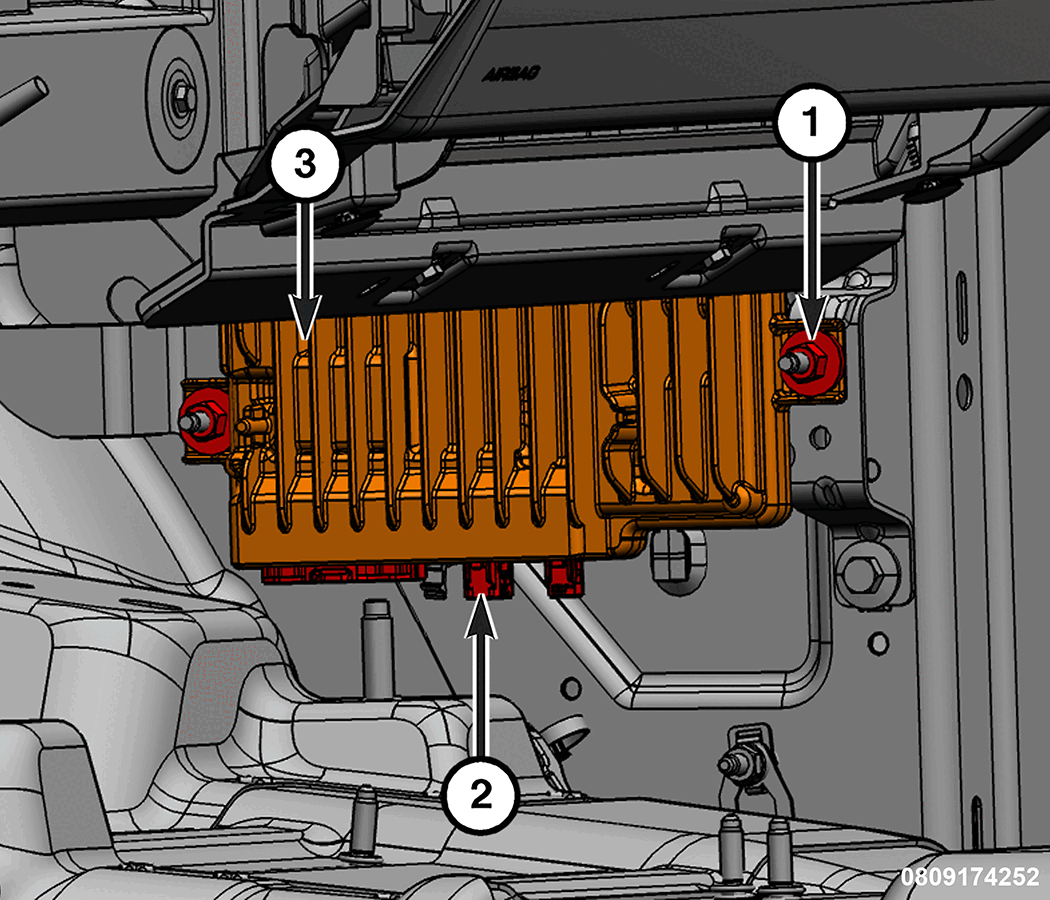

   Courtesy of CHRYSLER GROUP, LLC

   1 - CVPAM Bracket Nuts

   2 - Harness Connectors

   3 - CVPAM

2. Remove the wire harness connectors from the Central Vision Park Assist Module (CVPAM).
3. Remove the nuts securing the CVPAM to the bracket, then remove the CVPAM from the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Bolt and Push Fastener

   2 - Bracket

4. If required, remove the bolt and push fastener, then remove the bracket from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
