Trailer Tow Module

REMOVAL

1. Remove the right quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .

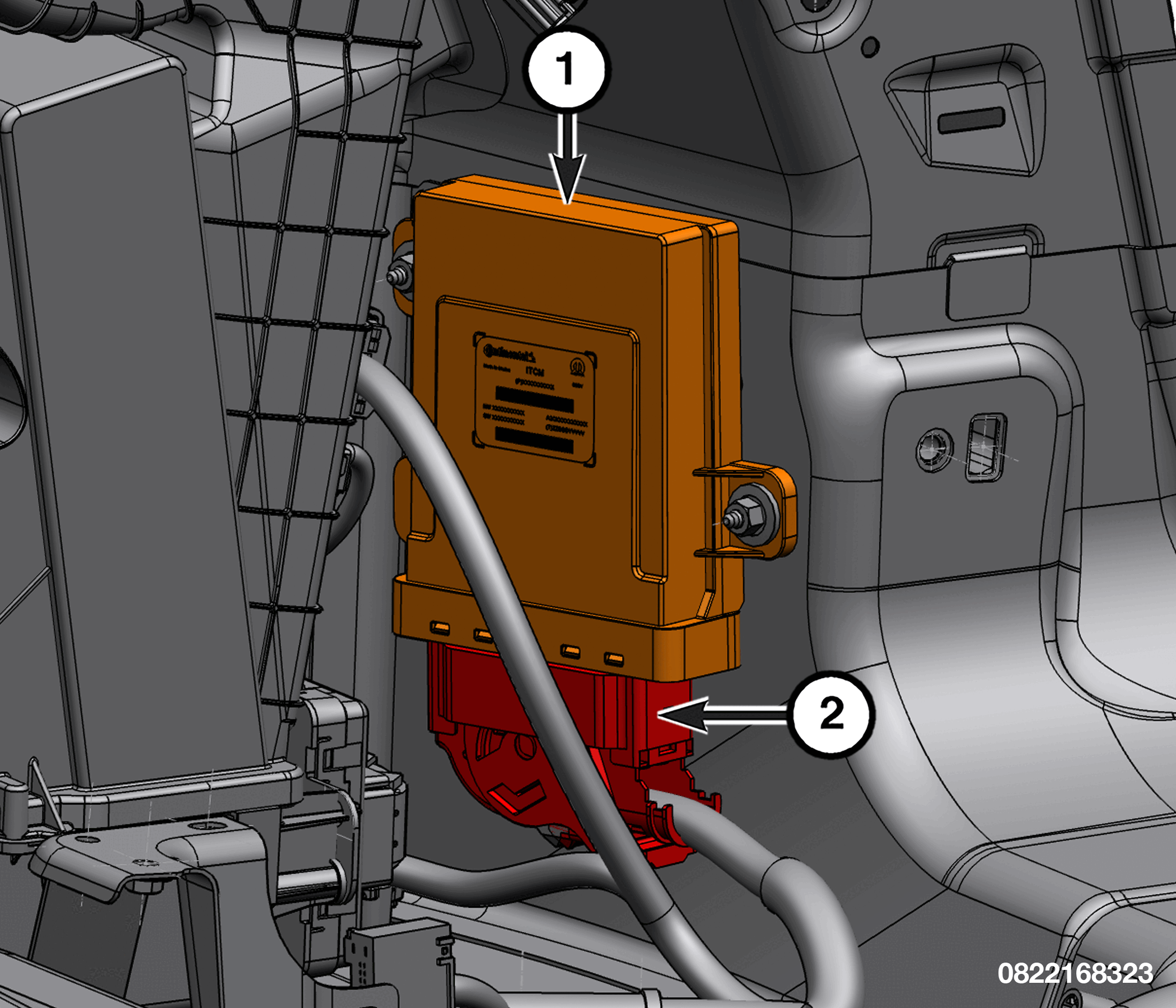

   Courtesy of CHRYSLER GROUP, LLC

   1 - Trailer Tow Module (TTM)

   2 - Wire Harness Connector

2. Disconnect the TTM wire harness connector.

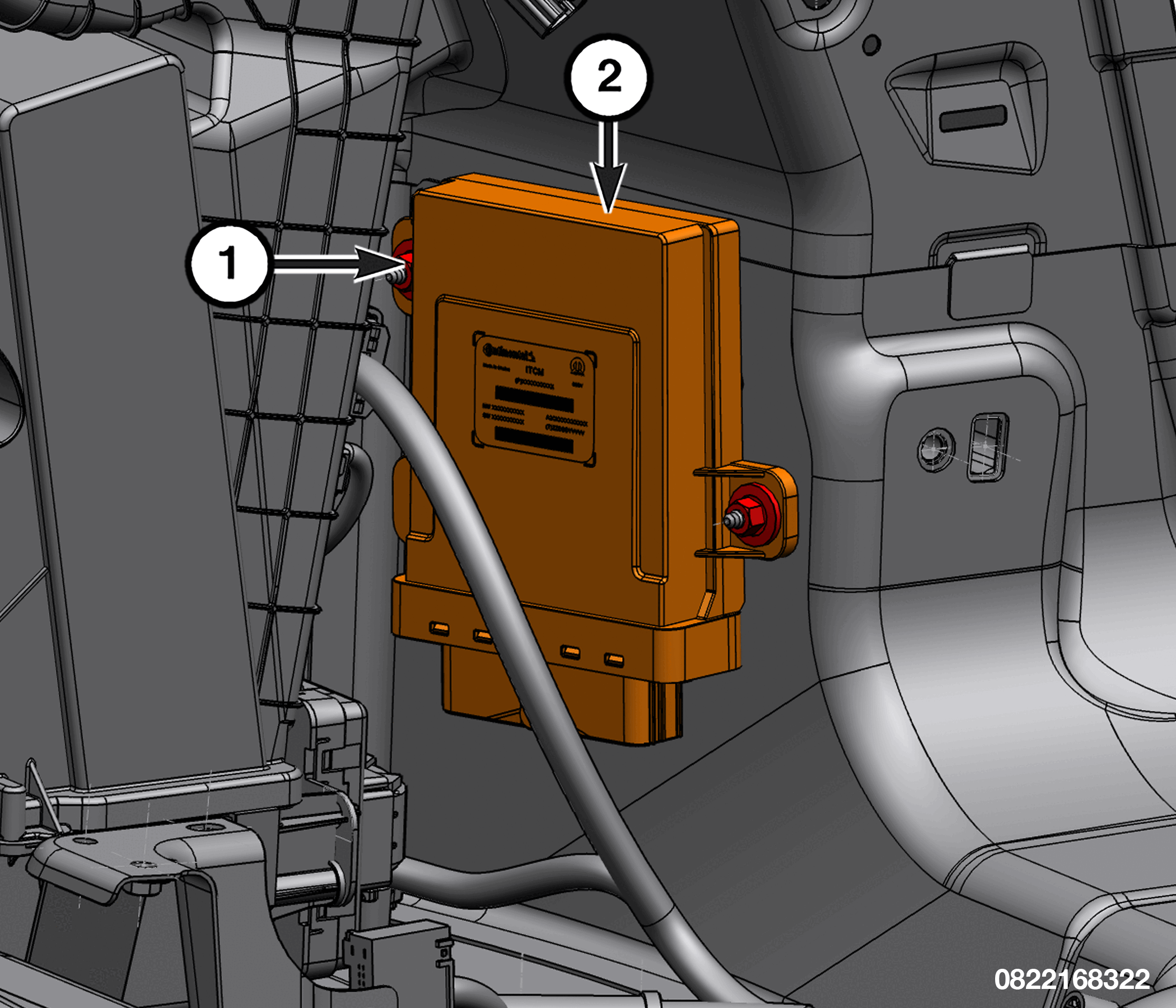

   Courtesy of CHRYSLER GROUP, LLC

   1 - TTM Nuts

   2 - TTM

3. Remove the TTM nuts.
4. Remove the TTM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
