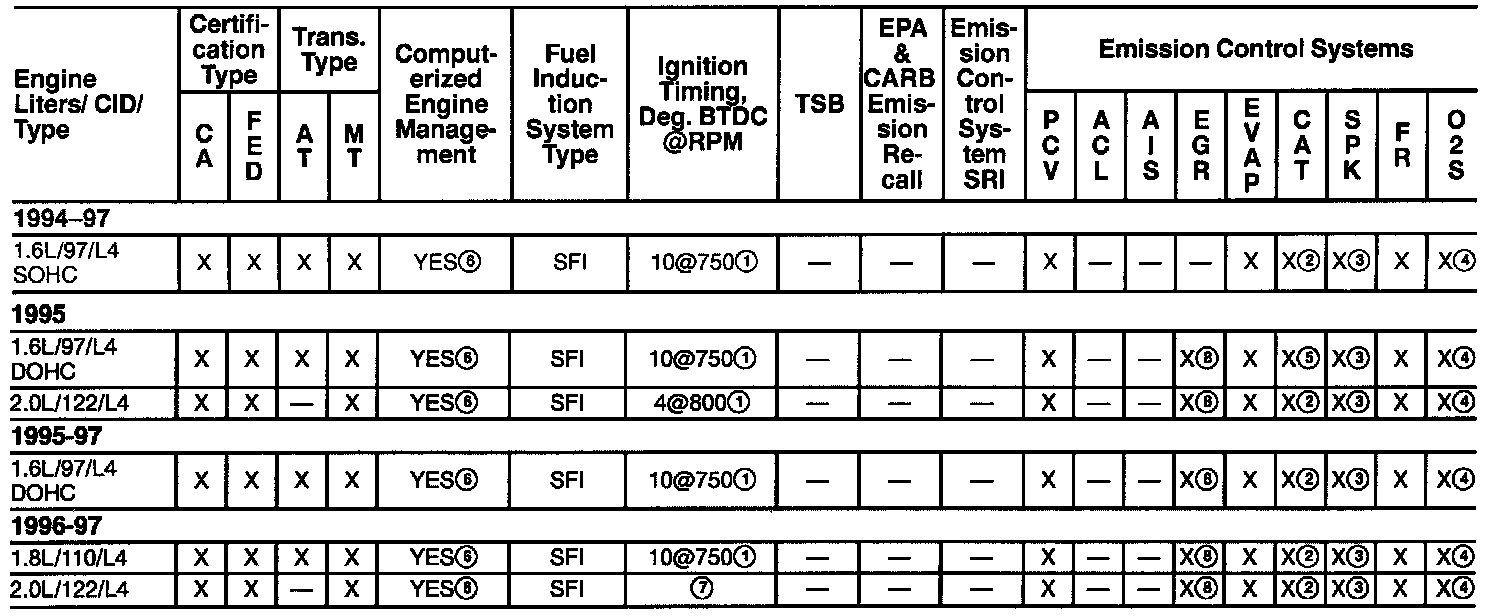

Emission Control Systems: Application and ID

Footnotes:

X - Equipped

- Not Equipped

1 - With jumper wire connected between DLC ENG TEST & GND terminals. The DLC is located on the upper center portion of the firewall.

2 - Type, TWC; number of catalytic converters, 1.

3 - DI/ESA.

4 - One 02S.

5 - MFI System.

6 - SFI System.

7 - Refer to the vehicle emission control information label.

8 - ECM controlled EGR system.
