Engine - Coolant Temperature Sensor/Switch: Service and Repair

REMOVAL

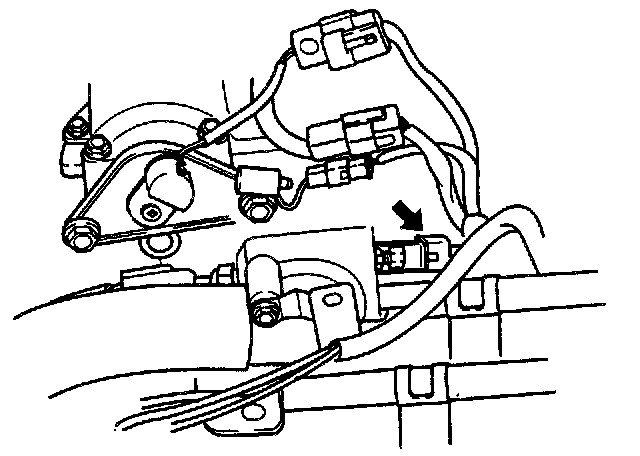

NOTE: Engine coolant temperature sensor is located near thermostat

1. Disconnect engine coolant temperature sensor connector.




2. Remove engine coolant temperature sensor.


INSTALLATION

1. Install a new washer and engine coolant temperature sensor onto engine.
Tightening Torque: 16 - 22 lb.ft (25 - 29 Nm, 2.5 - 2.9 kg.m)
2. Connect engine coolant temperature sensor connector.




3. Start engine and check for coolant leakage.
