Jack and Safety Stand Positions

Front end

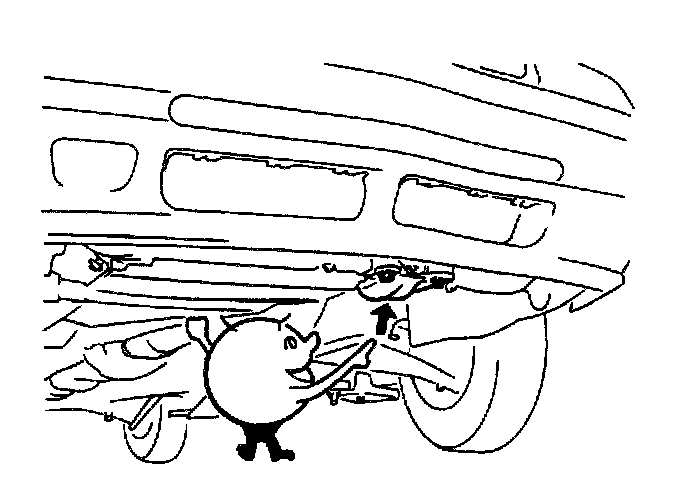

Jack position:
At the front crossmember

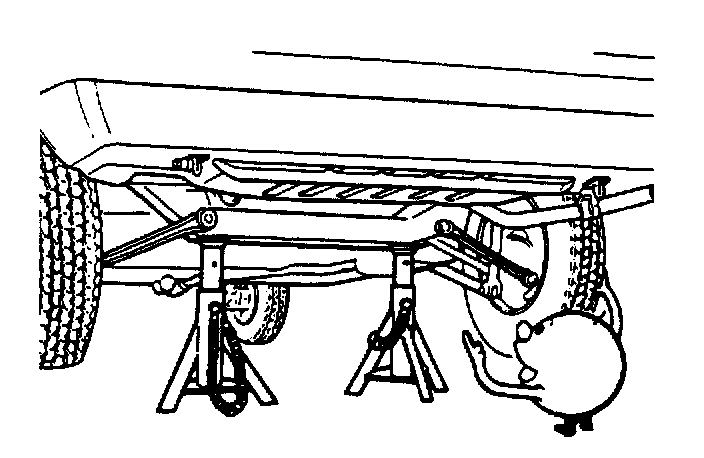

Safety stand positions:
On both sides of the body frame

Rear end

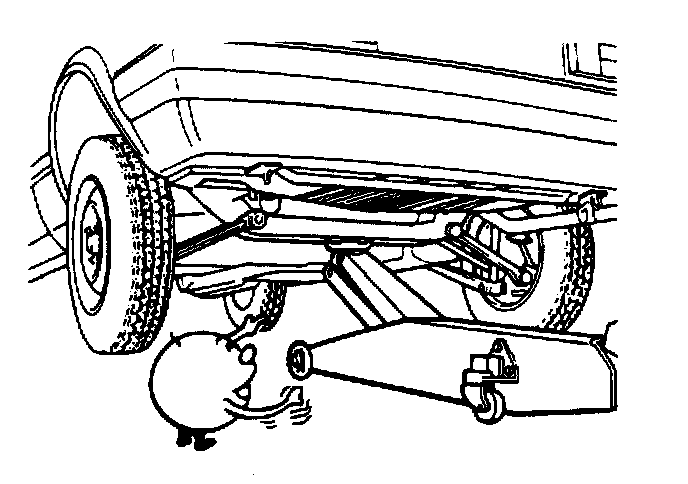

Jack position:
At the center of the rear crossmember

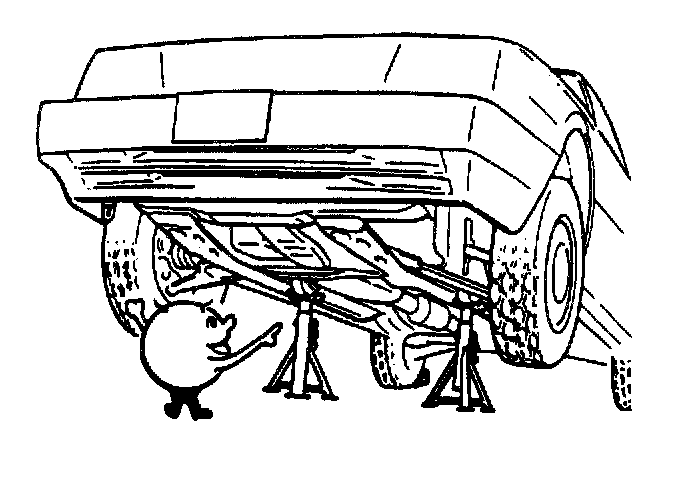

Safety stand positions:
On both sides of the body frame
