Manual Transaxle System: Differential: Components

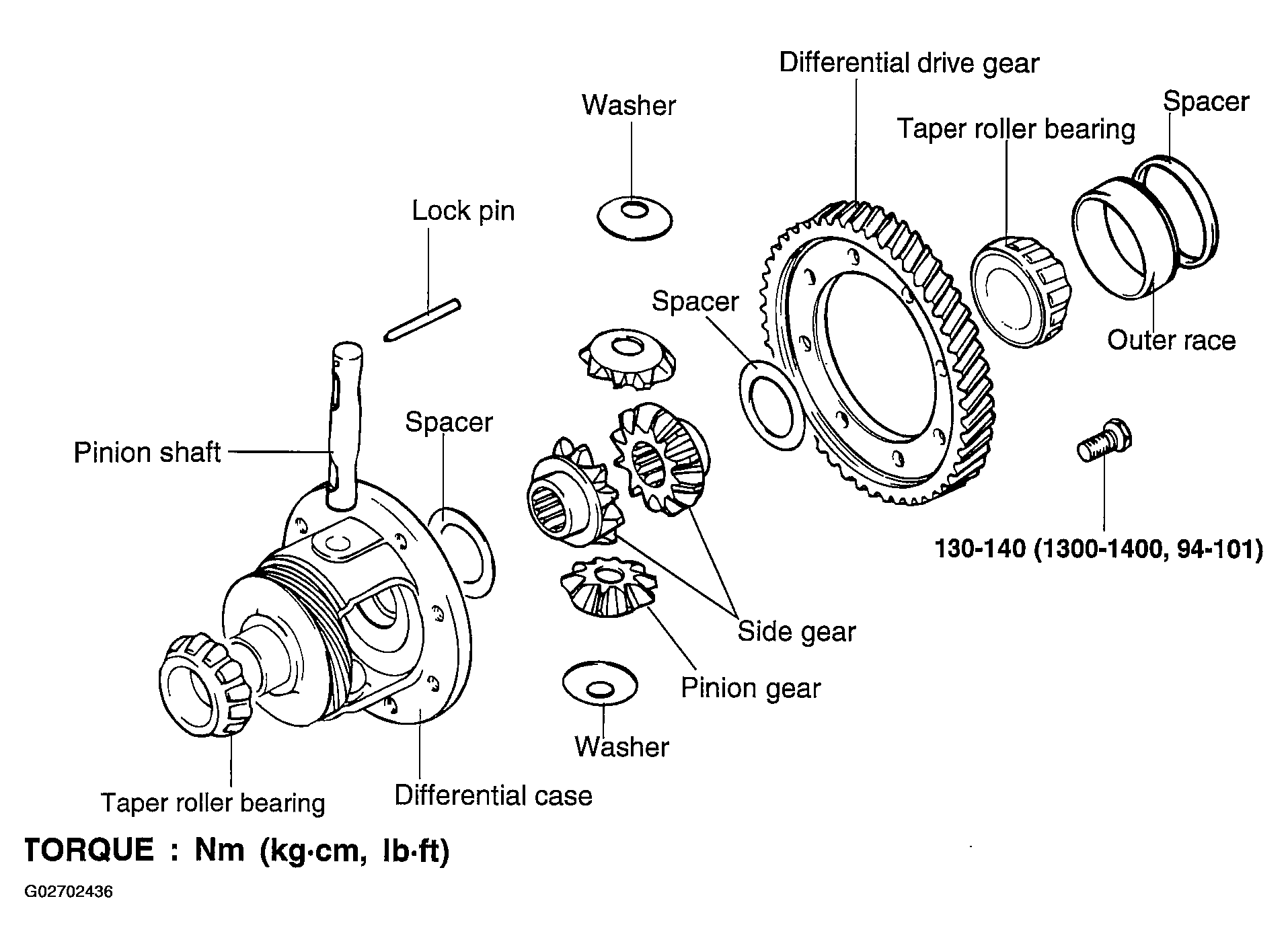

Fig 1: Identifying Differential Components

G02702436
