Brake Band: Disassembly

Disassemble in order shown in Fig 1 .

NOTE: Use a piece of wire to secure 2-4 brake band so that it is not damaged by being allowed to fully expand.

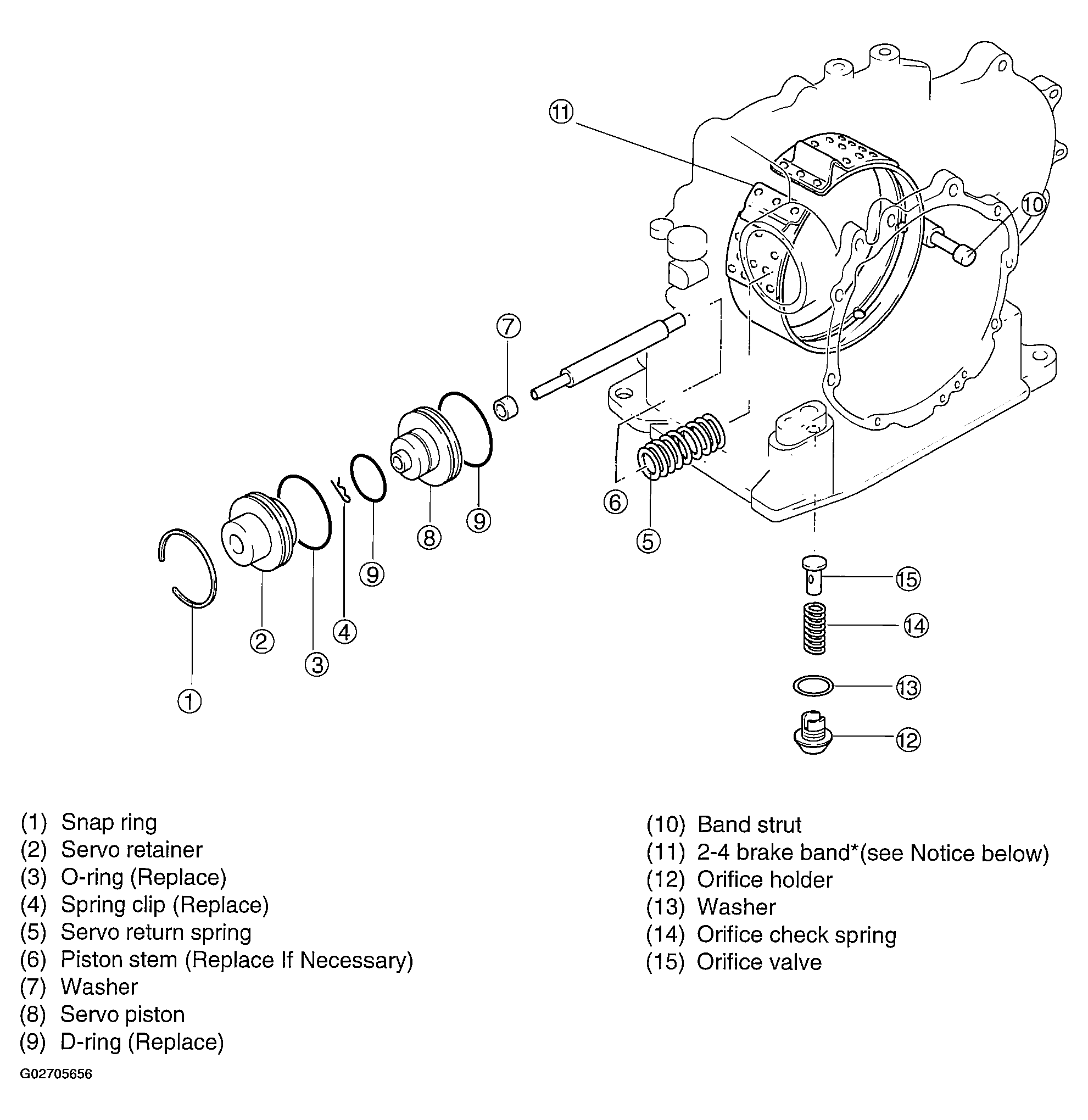

Fig 1: Exploded View Of Brake Band & Servo Components

Fig 2: Installing Wire To Secure 2-4 Brake Band
