Washing Inside Converter

  1. Drain any ATF remaining in converter.
  2. Pour in ATF 0.5 US qt. (0.5 liter, 0.44 lmp qt).
  3. Shake converter to clean inside. Pour out ATF.

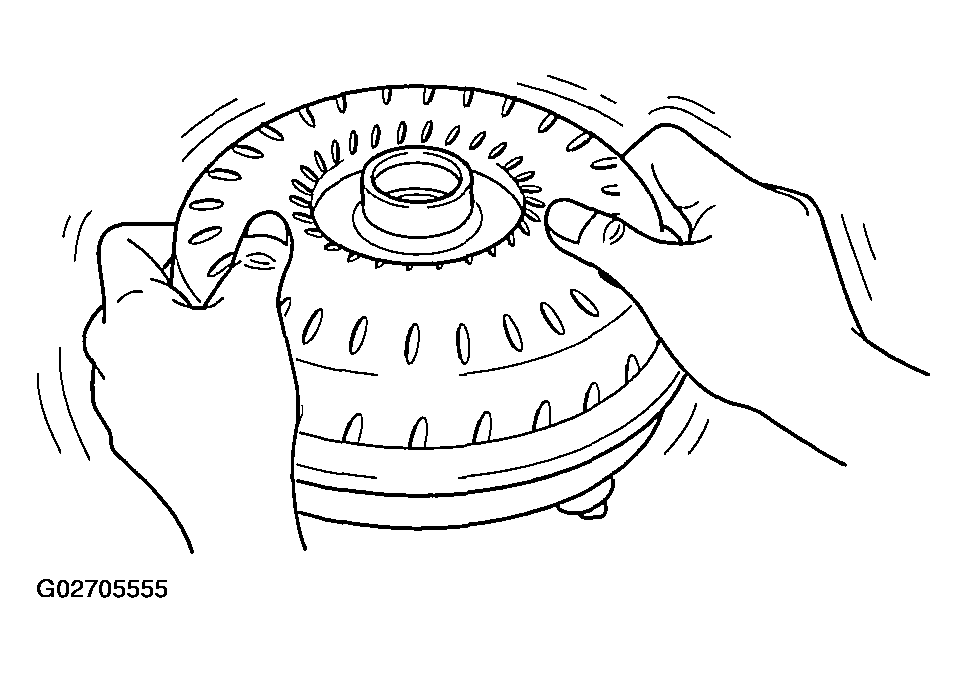

    Fig 1: Shaking Torque Converter
    G02705555
  4. Pour in ATF.
  5. Shake converter to clean inside. Pour out ATF.
    NOTE: Replace torque converter if it contains any metallic particles.
