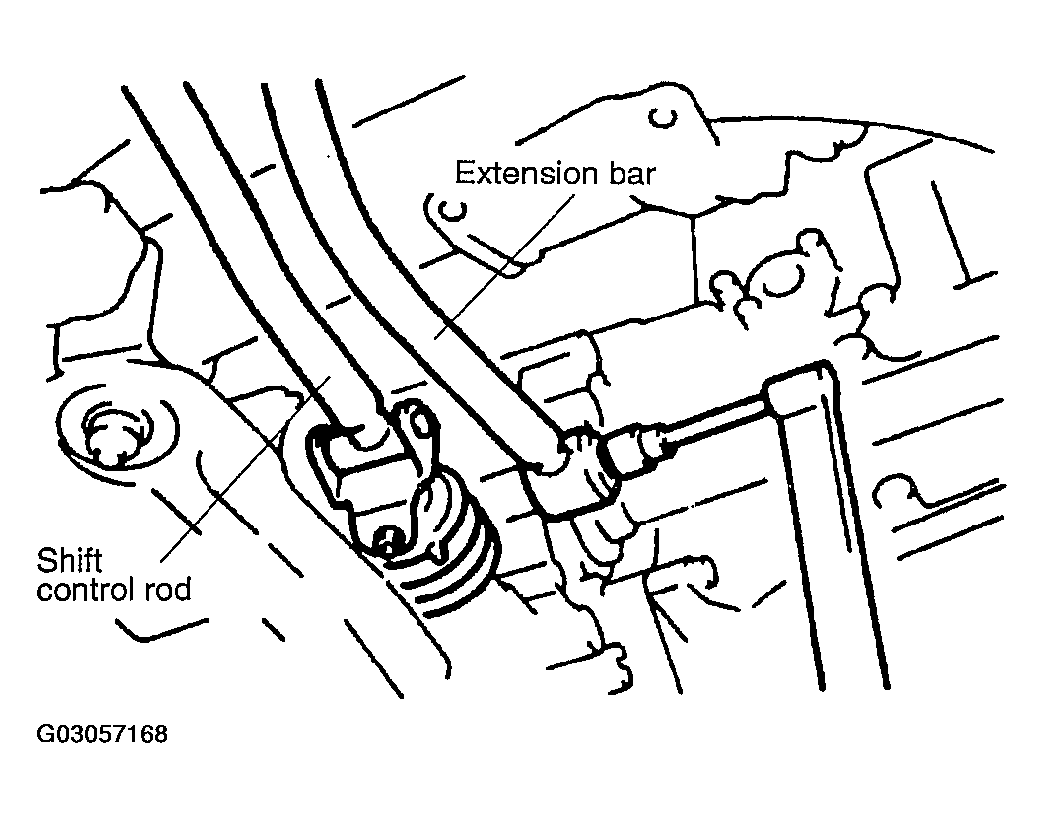

Extension bar
- Install the extension bar to the floor, and then onto the transaxle. Tighten the extension bar nut at the transaxle.
Tightening torque: 23 ~ 34 lb. ft. (31 ~ 46 N.m, 3.2 ~ 4.7 kg-m)
- Tighten the shifter bracket nuts to the specified torque.
Tightening torque: 86.9 ~ 130.2 lb. in. (9.8 ~ 14.7 N.m, 100 ~ 150 )
