Pinout Values and Diagnostic Parameters

ECM Terminal Pinouts:

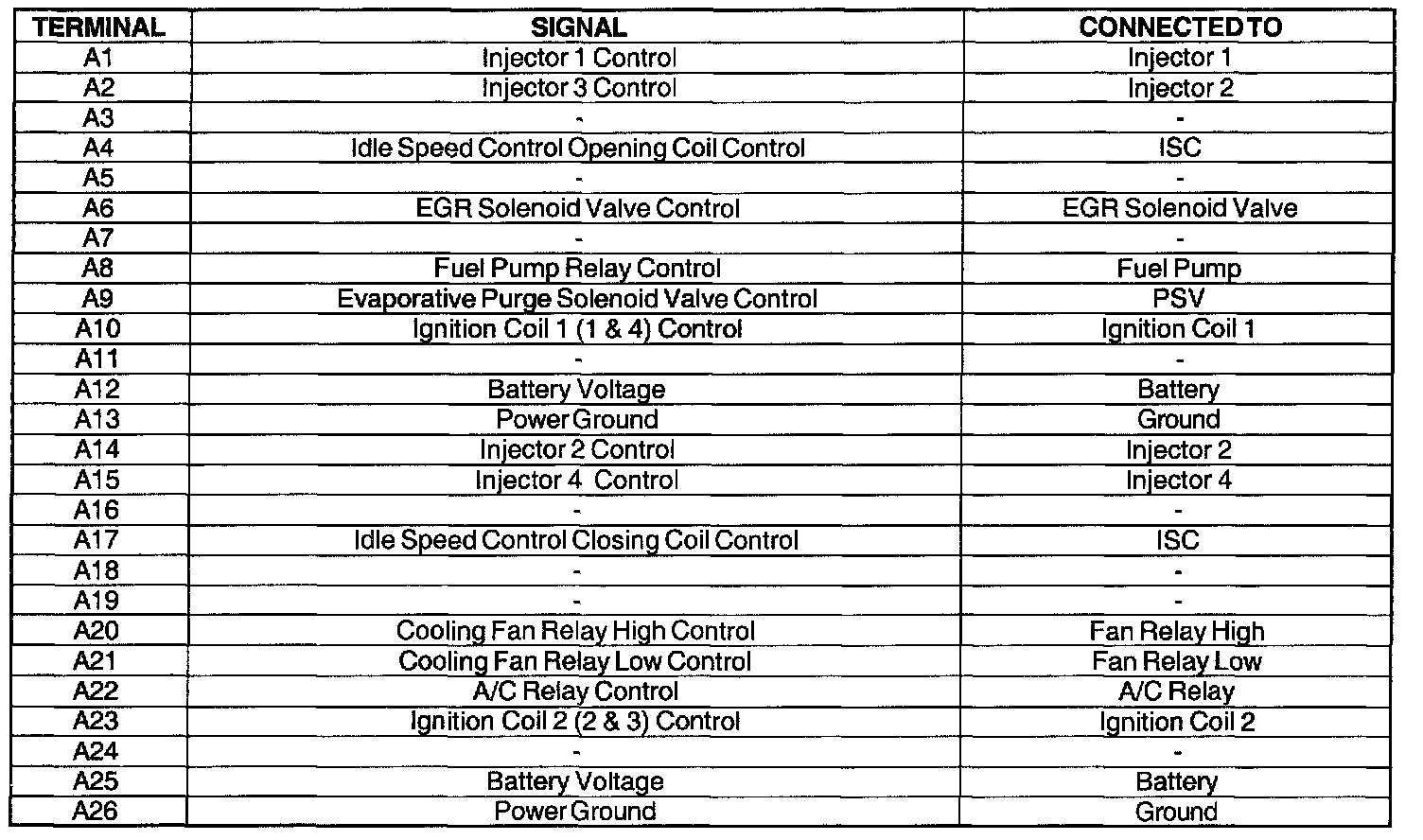

Connector <B-01> (Ter. A1 - A26):

Connector <B-02> (Ter. B1 - B16):

Connector <B-03> (Ter. C1 - C12):

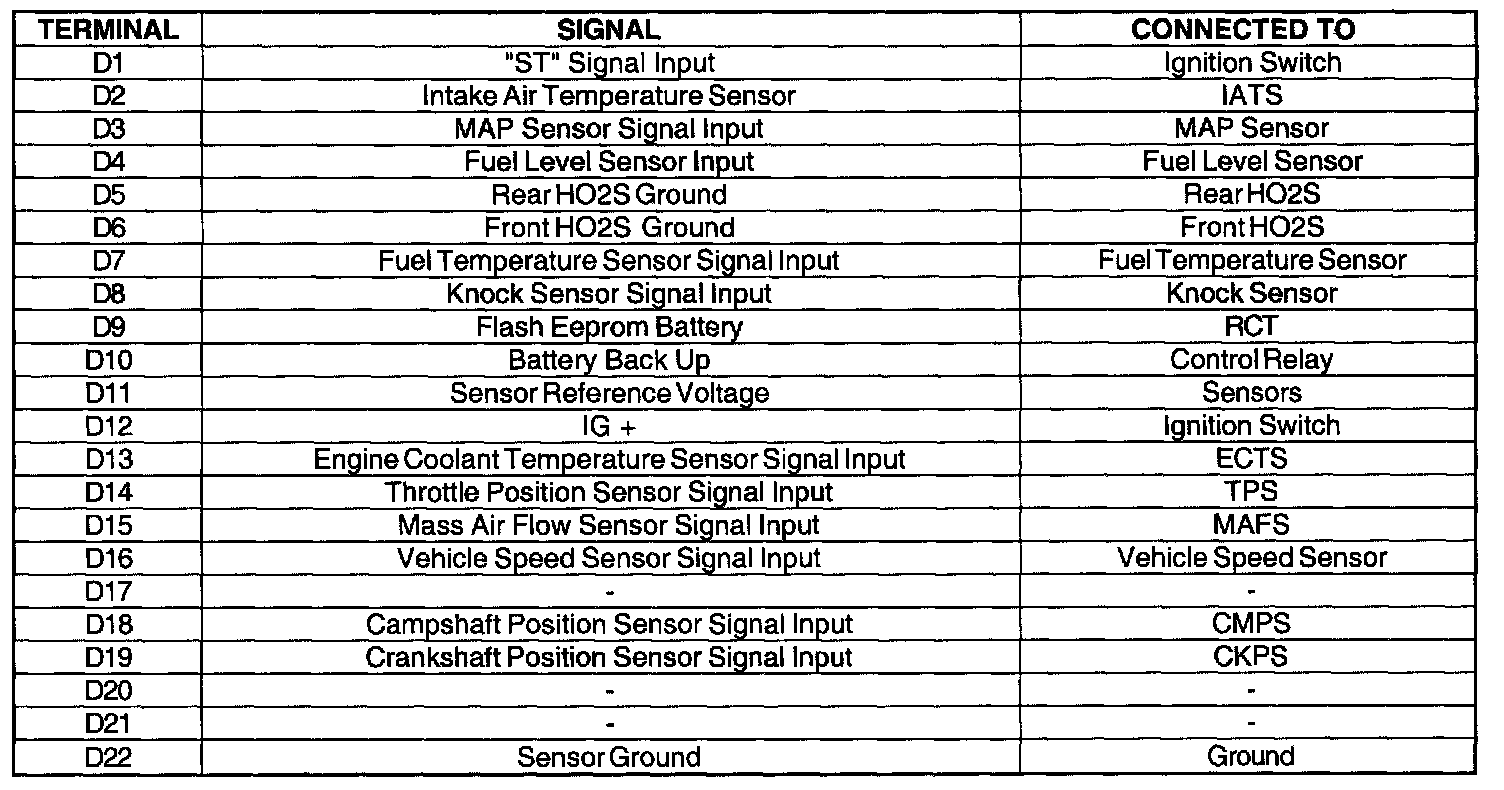

Connector <B-04> (Ter. D1 - D22):

Engine Terminal Layout (with TCM) Pinouts:

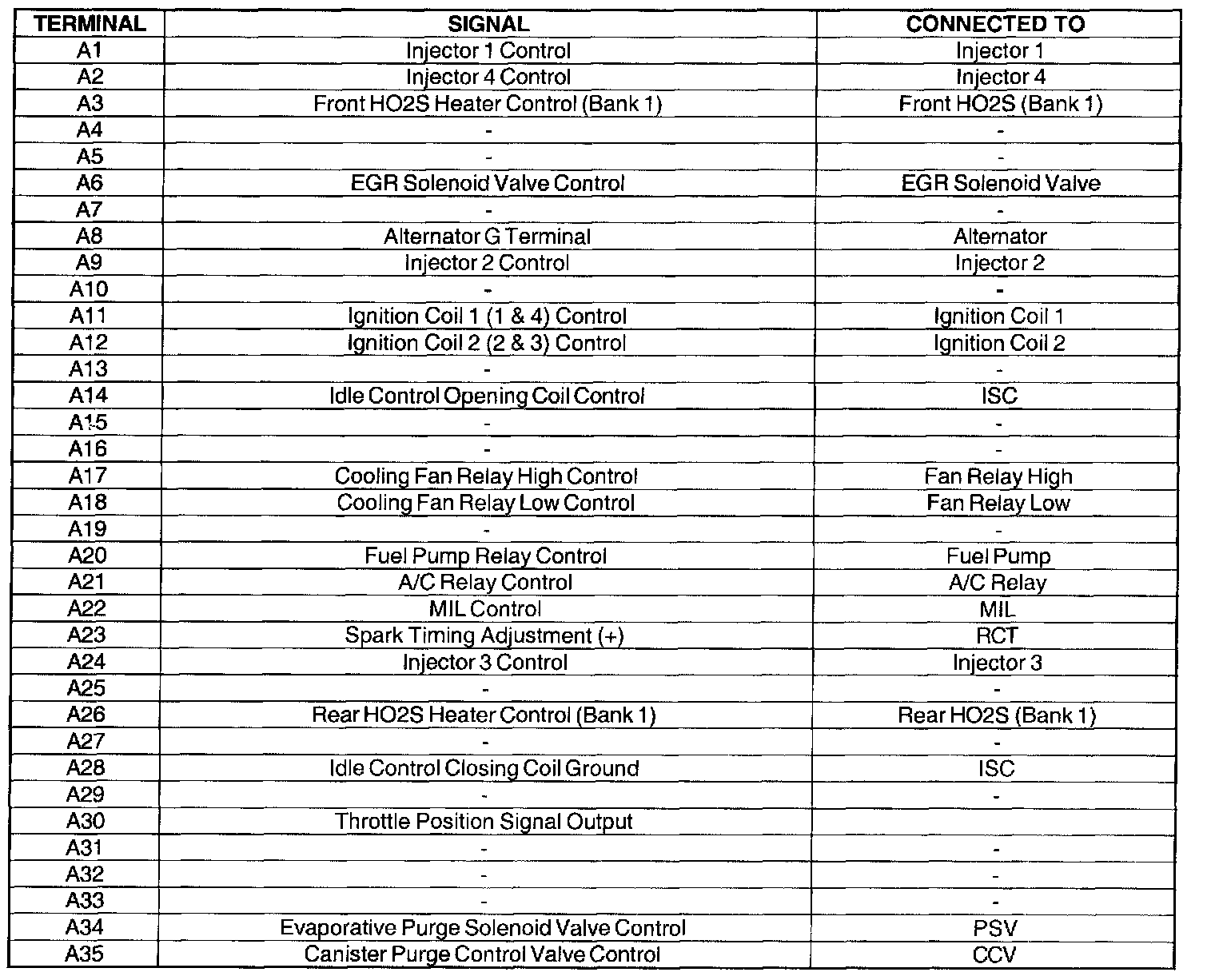

Connector B-01 (Ter. A1 - A35):

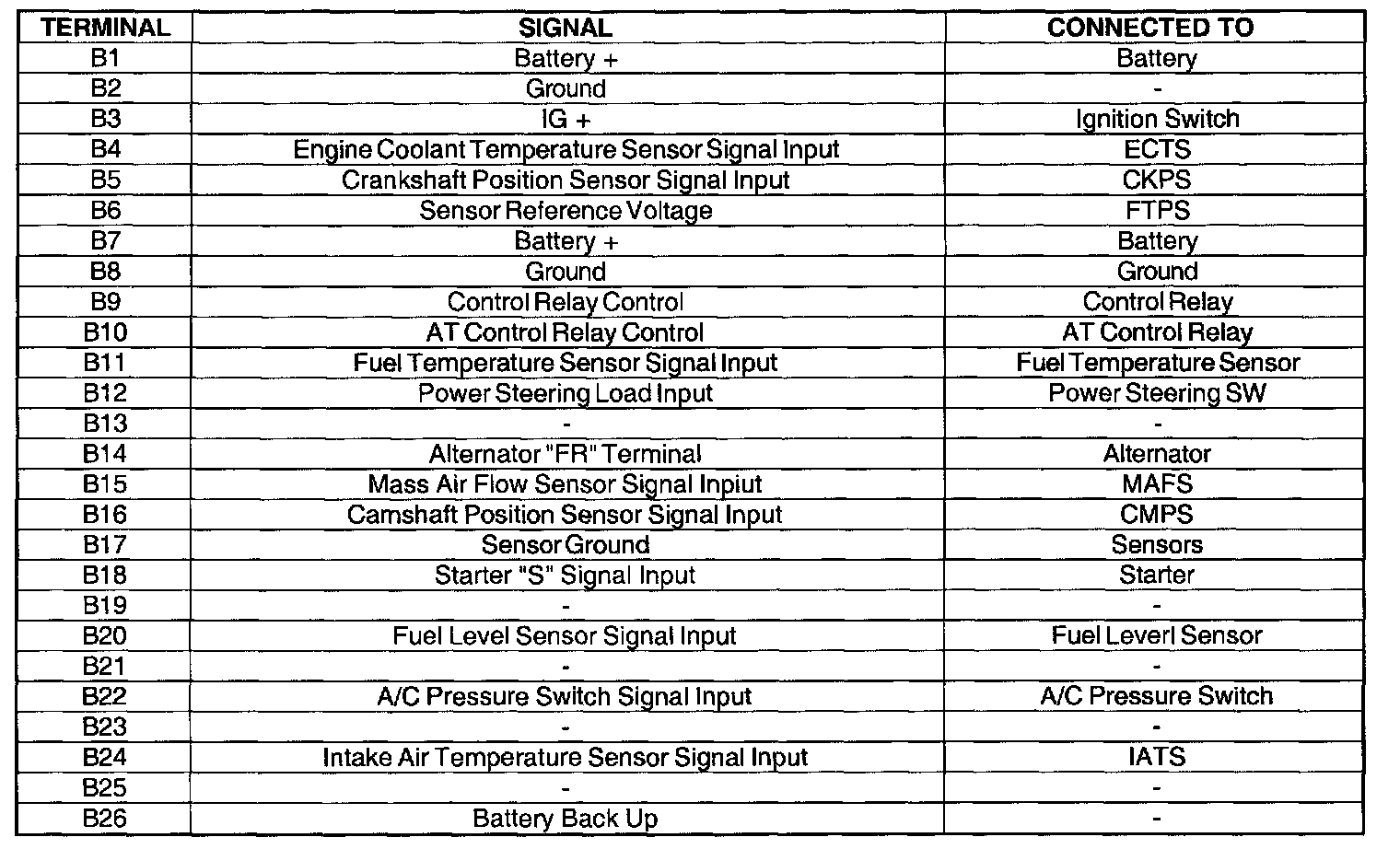

Connector B-02 (Ter. B1 - B26):

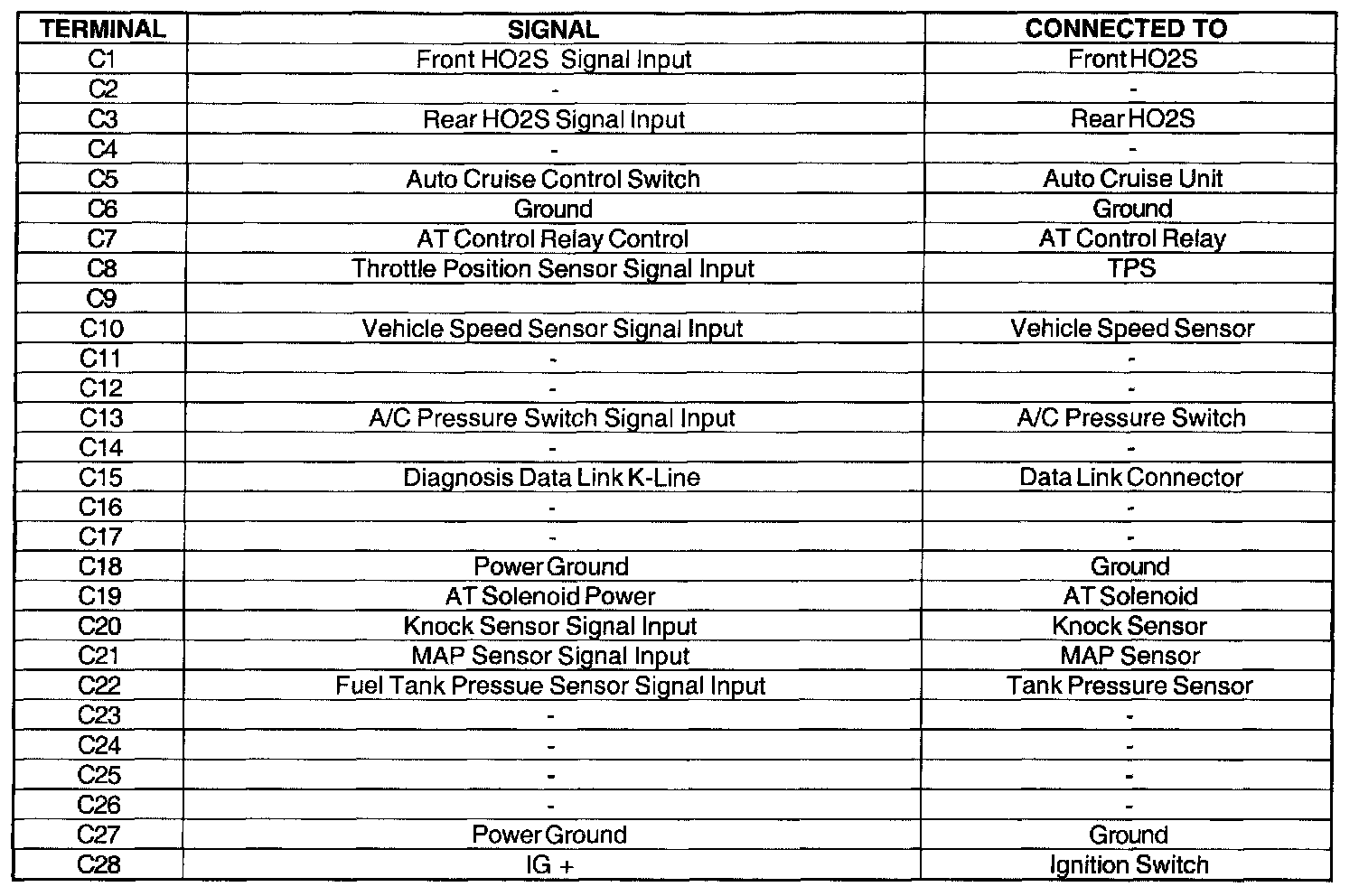

Connector B-03 (Ter. C1 - C28):

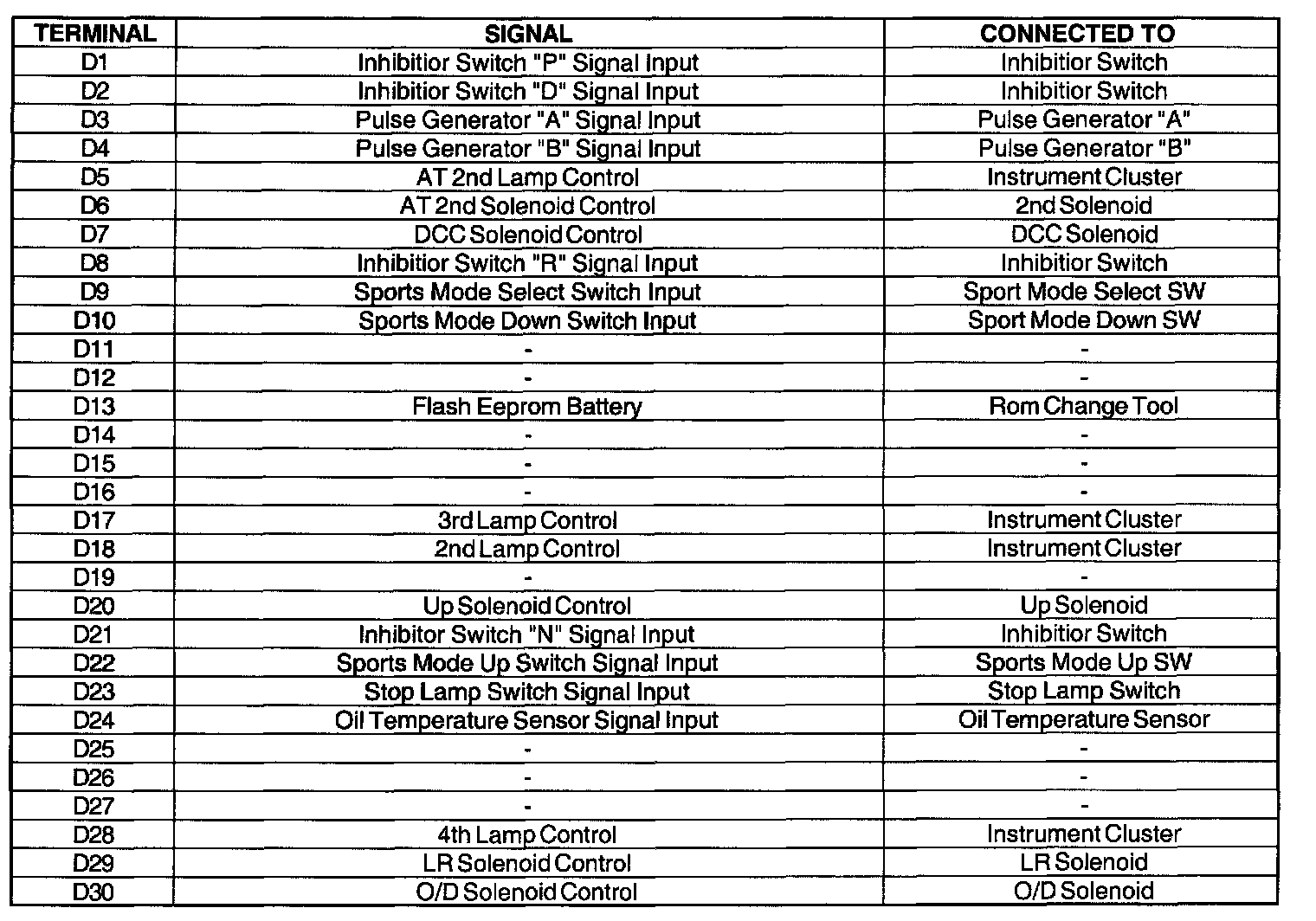

Connector B-04 (Ter. D1 - D30):
