Wheel Speed Sensor: Notes

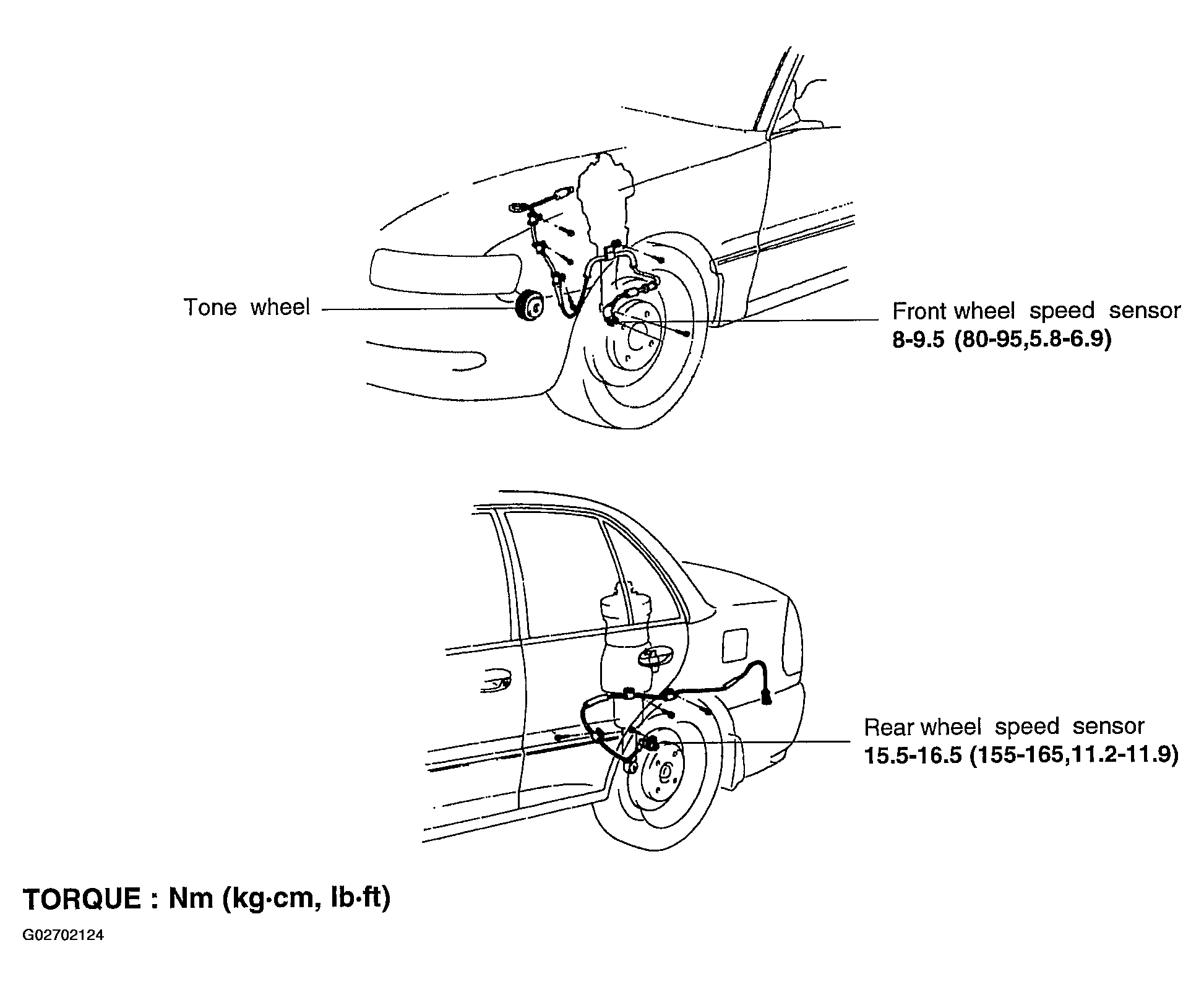

Fig 1: Locating Speed Sensors
G02702124Courtesy of KIA MOTORS AMERICA, INC.
