Blower Resistor: Replacement

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the connector (A) of the blower resistor.

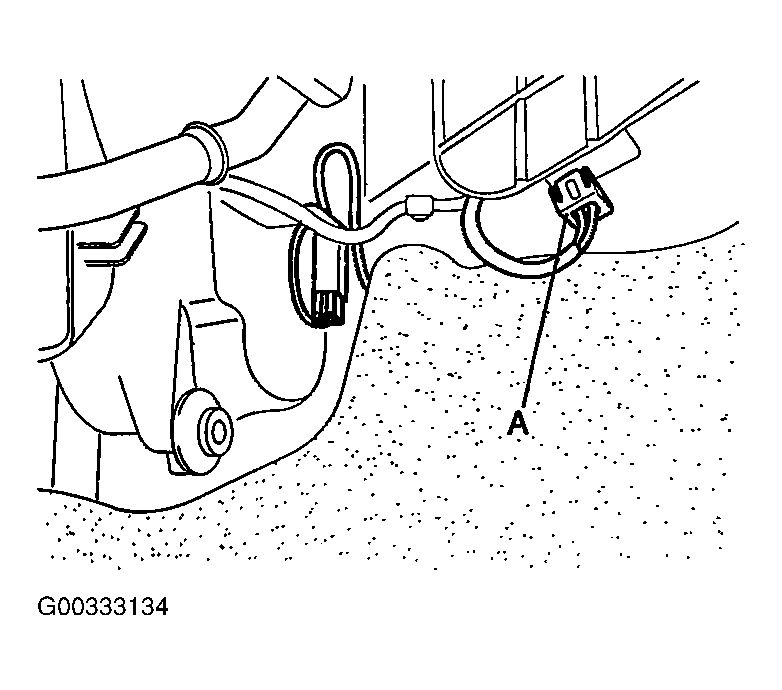

    Fig 1: Disconnecting Blower Motor Resistor Connector
    G00333134Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the blower resistor after loosening the mounting screws.
  4. Install in the reverse order of removal.
