Special Service Tools

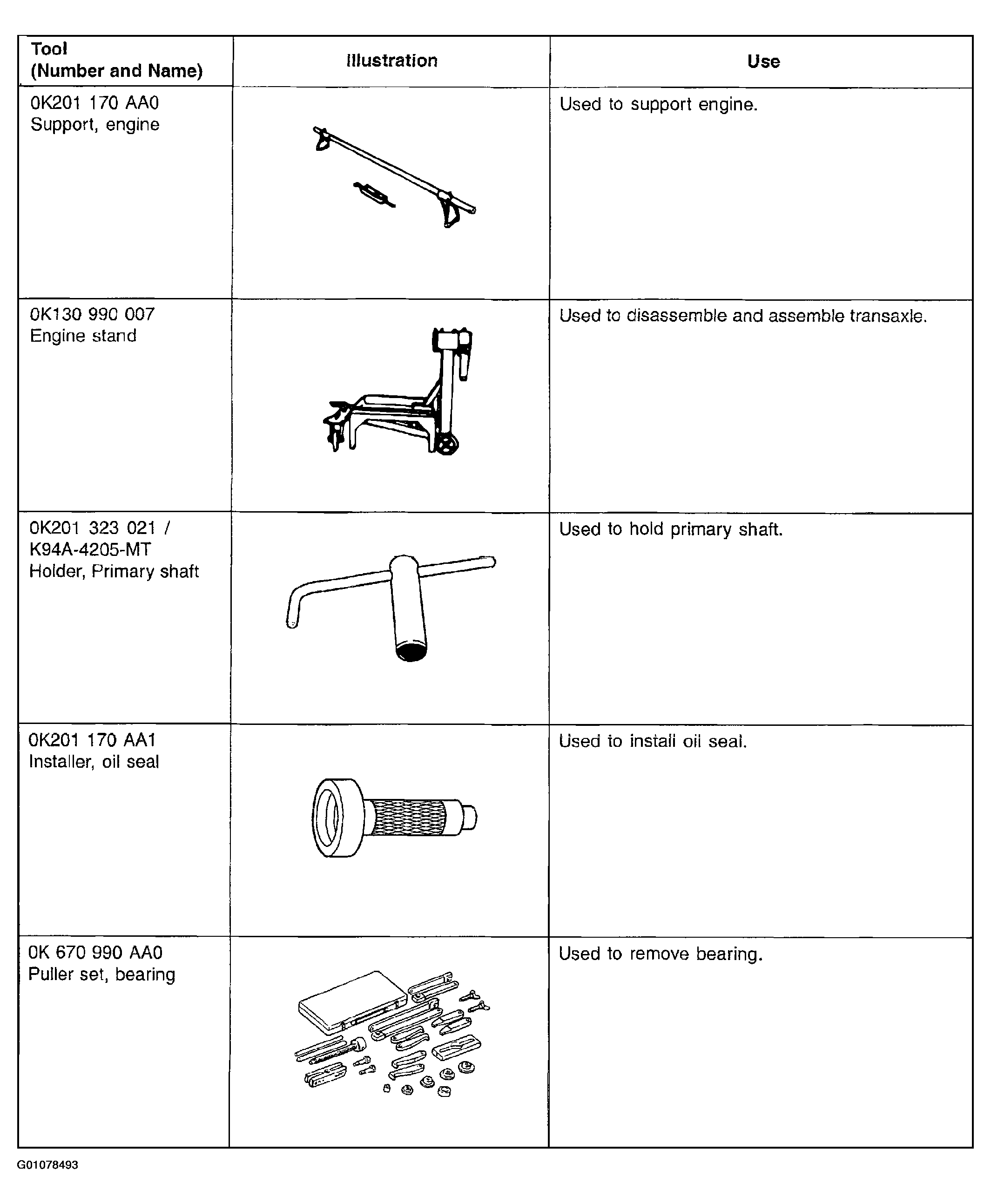

Fig 1: Illustrating Service Tools (1 Of 6)

G01078493

Courtesy of KIA MOTORS AMERICA, INC.

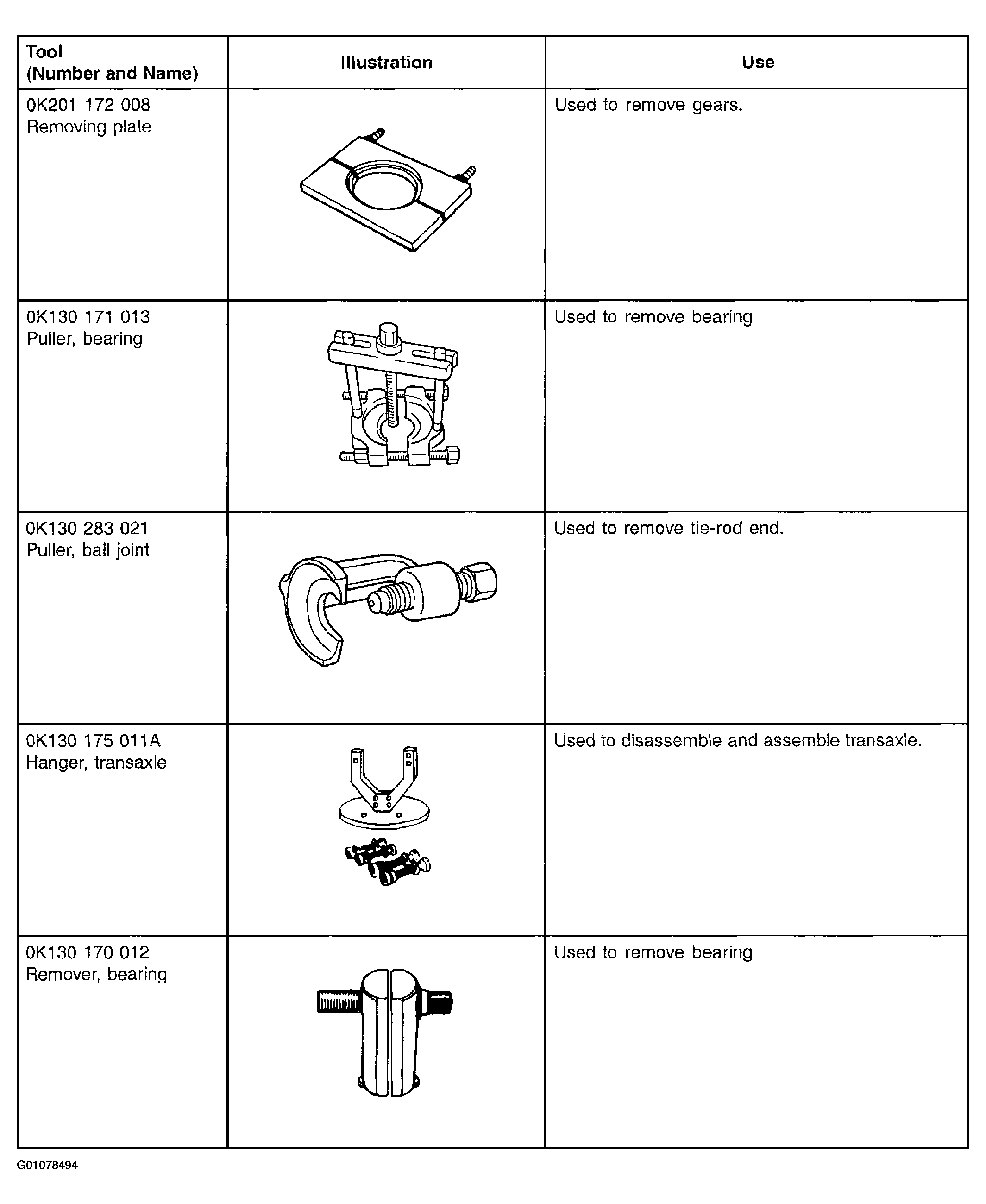

Fig 2: Illustrating Service Tools (2 Of 6)

G01078494

Courtesy of KIA MOTORS AMERICA, INC.

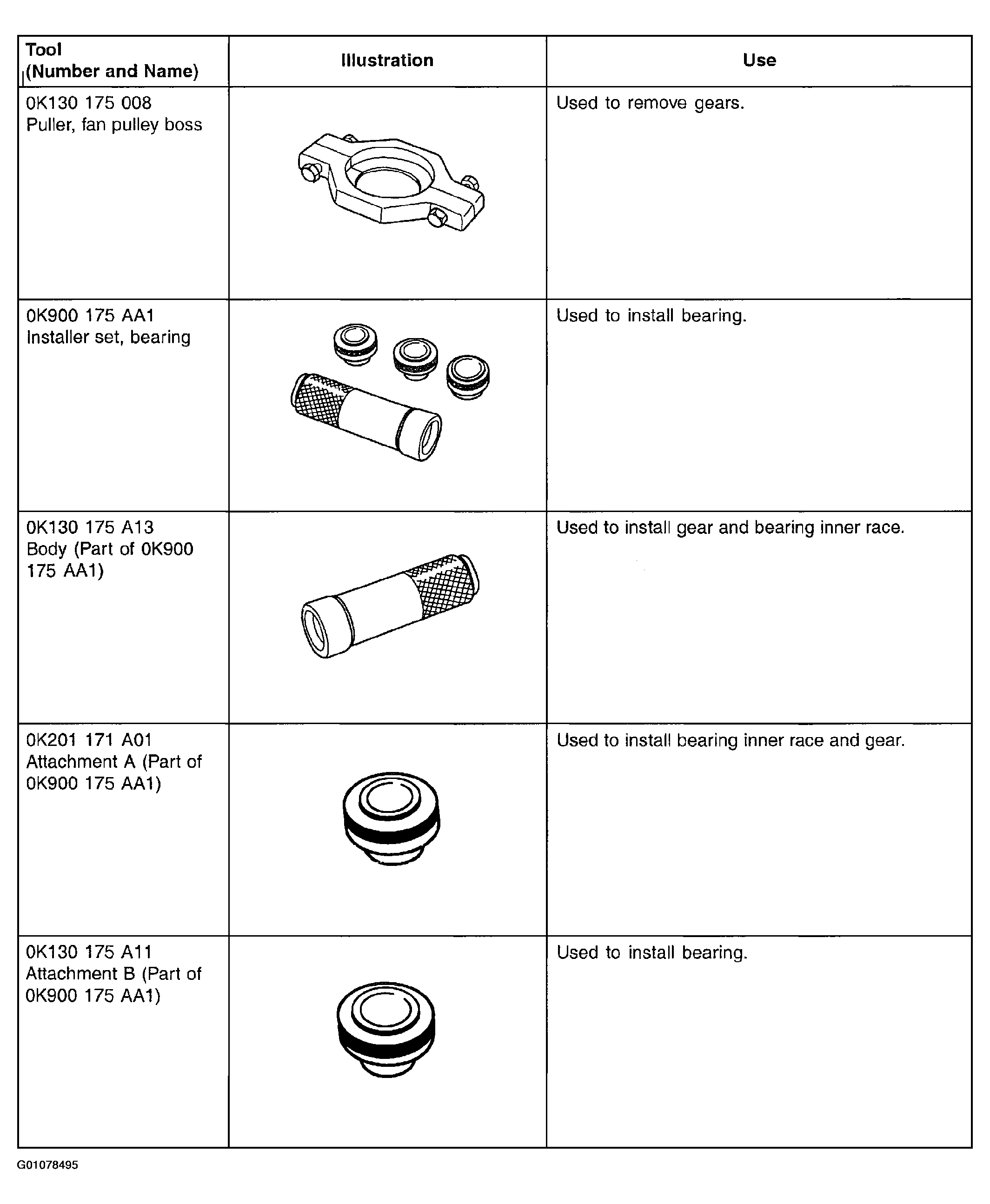

Fig 3: Illustrating Service Tools (3 Of 6)

G01078495

Courtesy of KIA MOTORS AMERICA, INC.

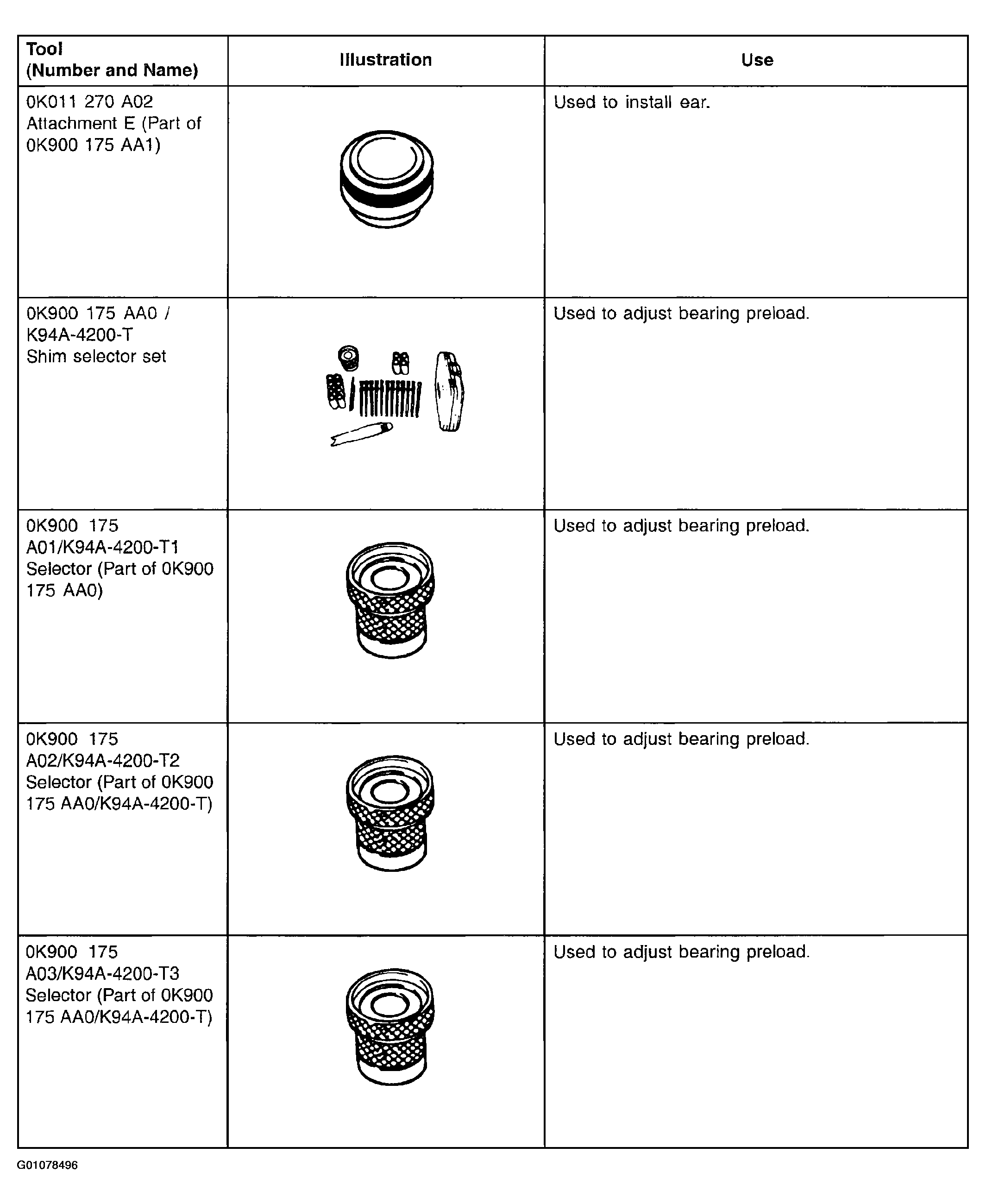

Fig 4: Illustrating Service Tools (4 Of 6)

G01078496

Courtesy of KIA MOTORS AMERICA, INC.

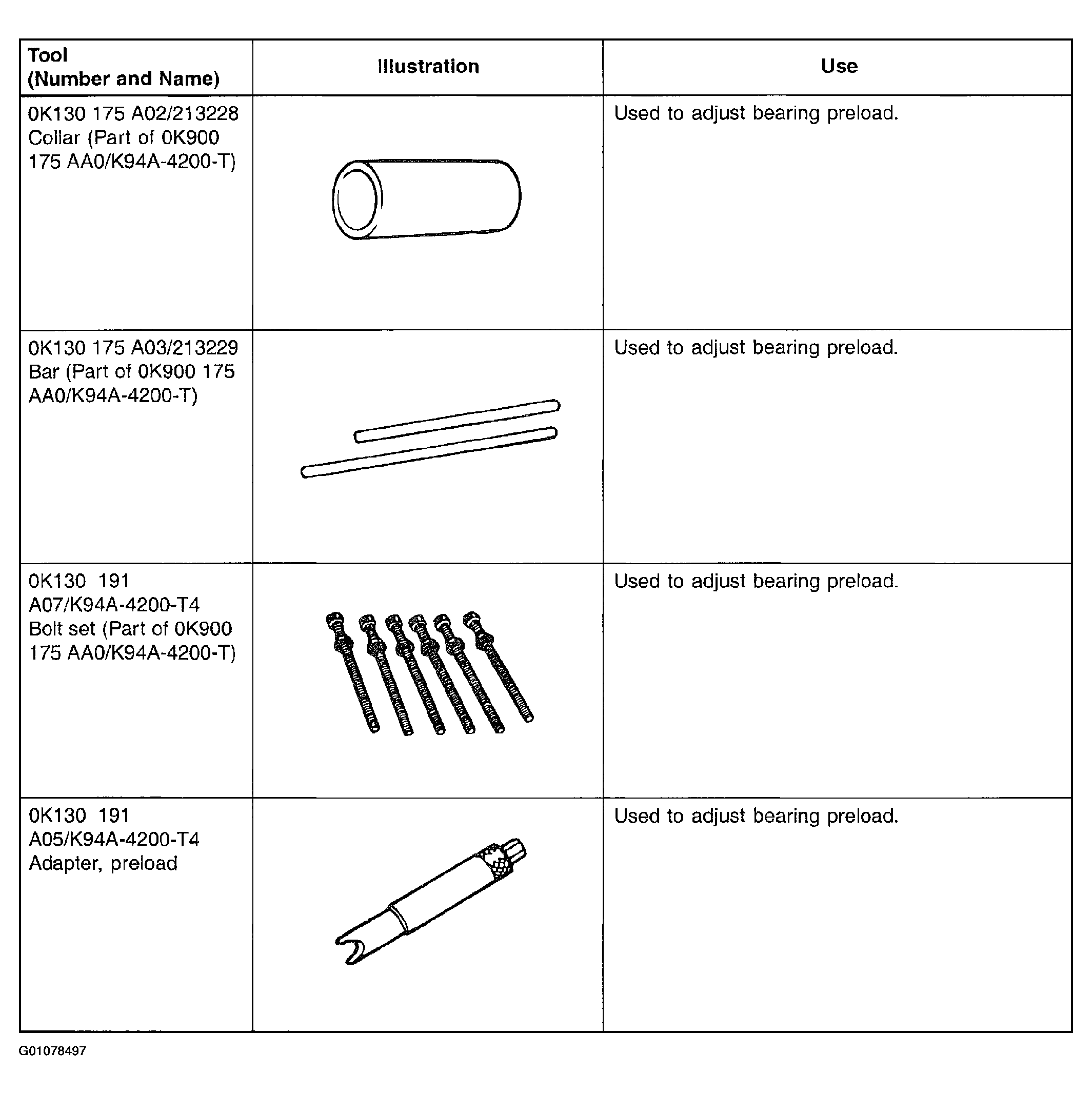

Fig 5: Illustrating Service Tools (5 Of 6)

G01078497

Courtesy of KIA MOTORS AMERICA, INC.

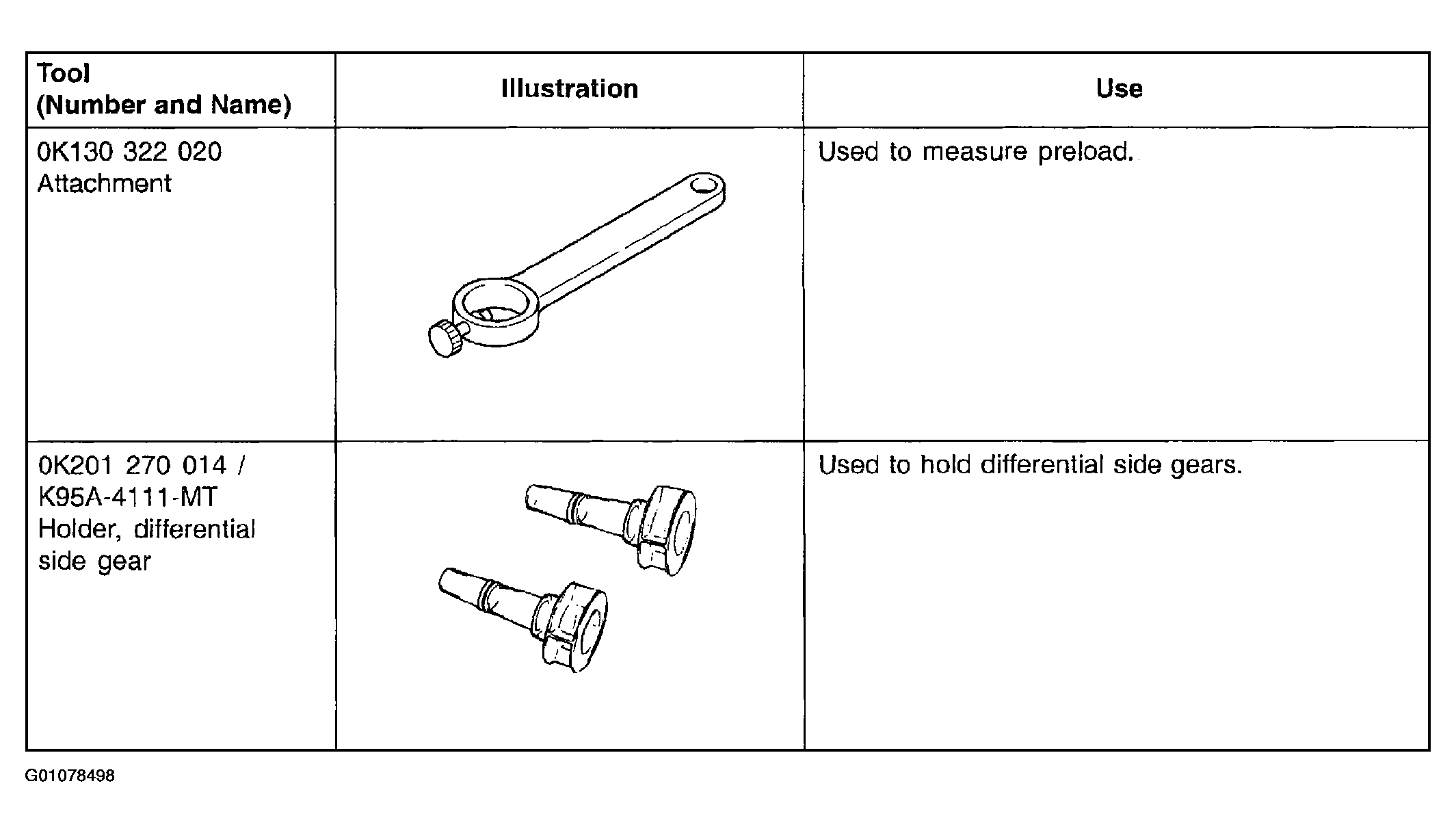

Fig 6: Illustrating Service Tools (6 Of 6)

G01078498

Courtesy of KIA MOTORS AMERICA, INC.
