Checking Fluid Level: Rio

NOTE: Keep vehicle level when checking oil level.

Raise and support vehicle with safety stands.
Remove the speedometer driven gear.
Verify that oil level is within the specifications. See Fig 1.
If oil is low, fill specified amount and type of oil through the speedometer driven gear. See Fig 2, RECOMMENDED FLUID and FLUID CAPACITIES .
Reinstall the speedometer driven gear in case.
Lower vehicle.

Fig 1: Checking Oil Level (Rio)

Courtesy of KIA MOTORS AMERICA, INC.

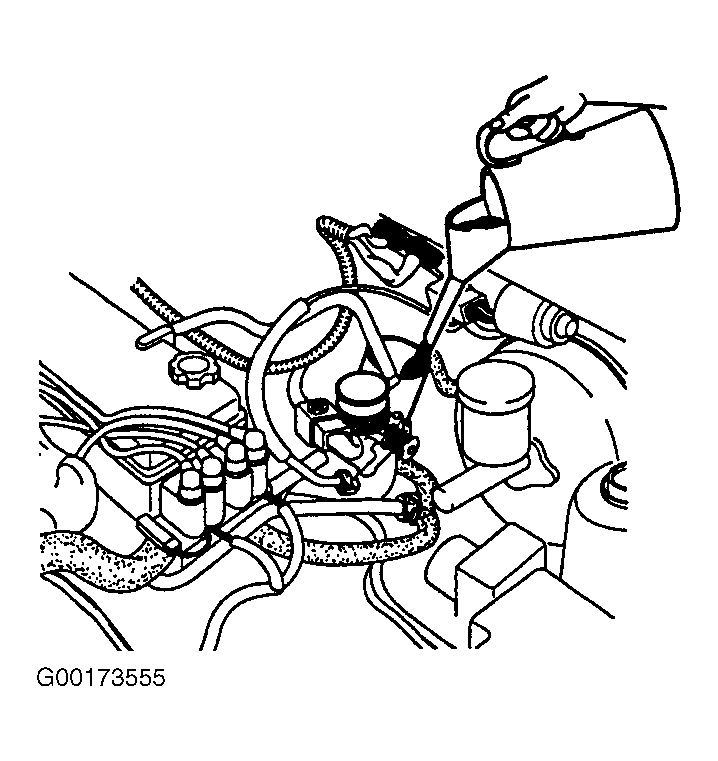

Fig 2: Refilling Oil (Rio)

Courtesy of KIA MOTORS AMERICA, INC.
