Repair and Diagnosis: Transmission: Clutches: Specifications

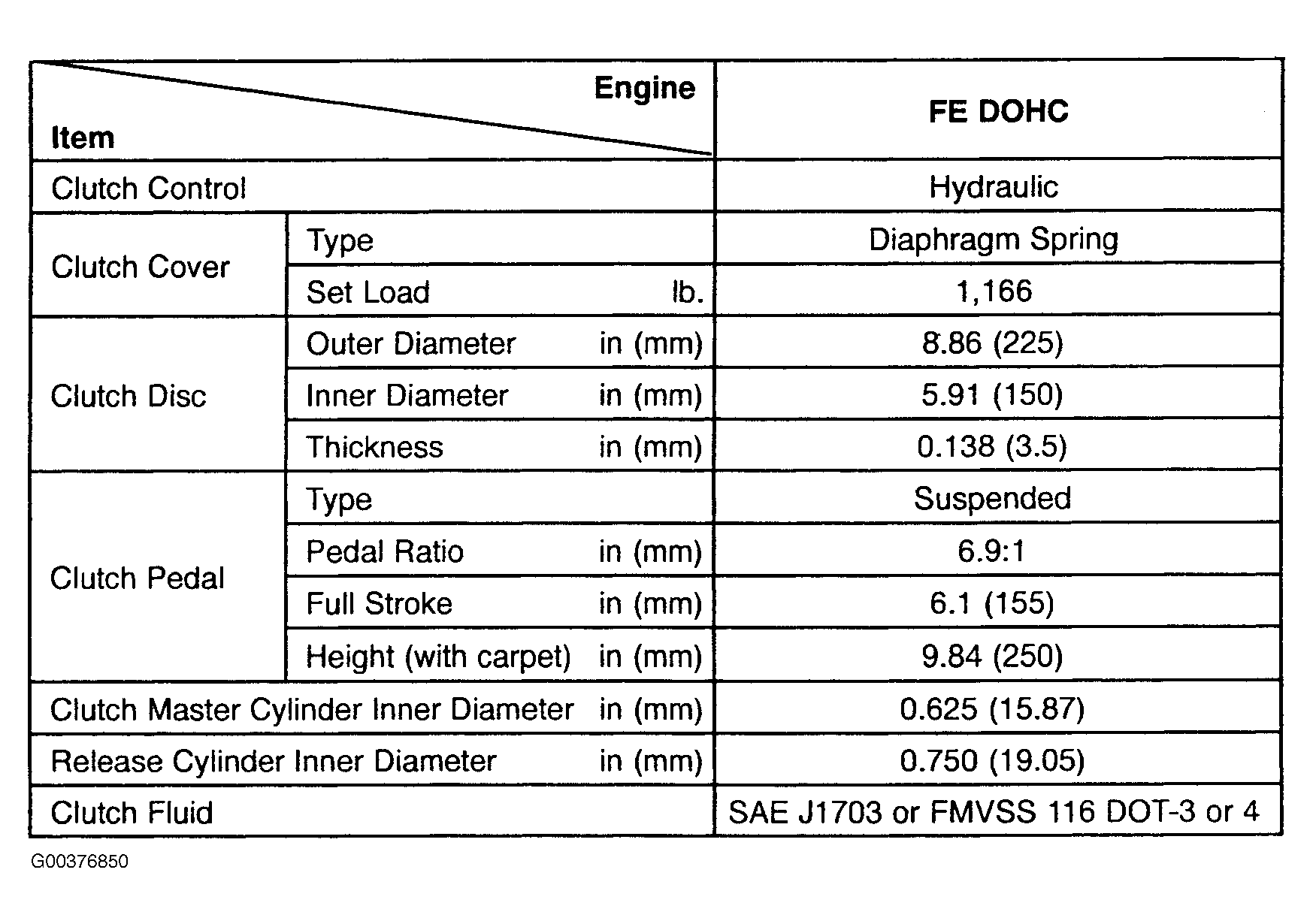

Fig 1: Clutch Specifications

G00376850

Courtesy of KIA MOTORS AMERICA, INC.
