Manual Transaxle Shift Controls: Components

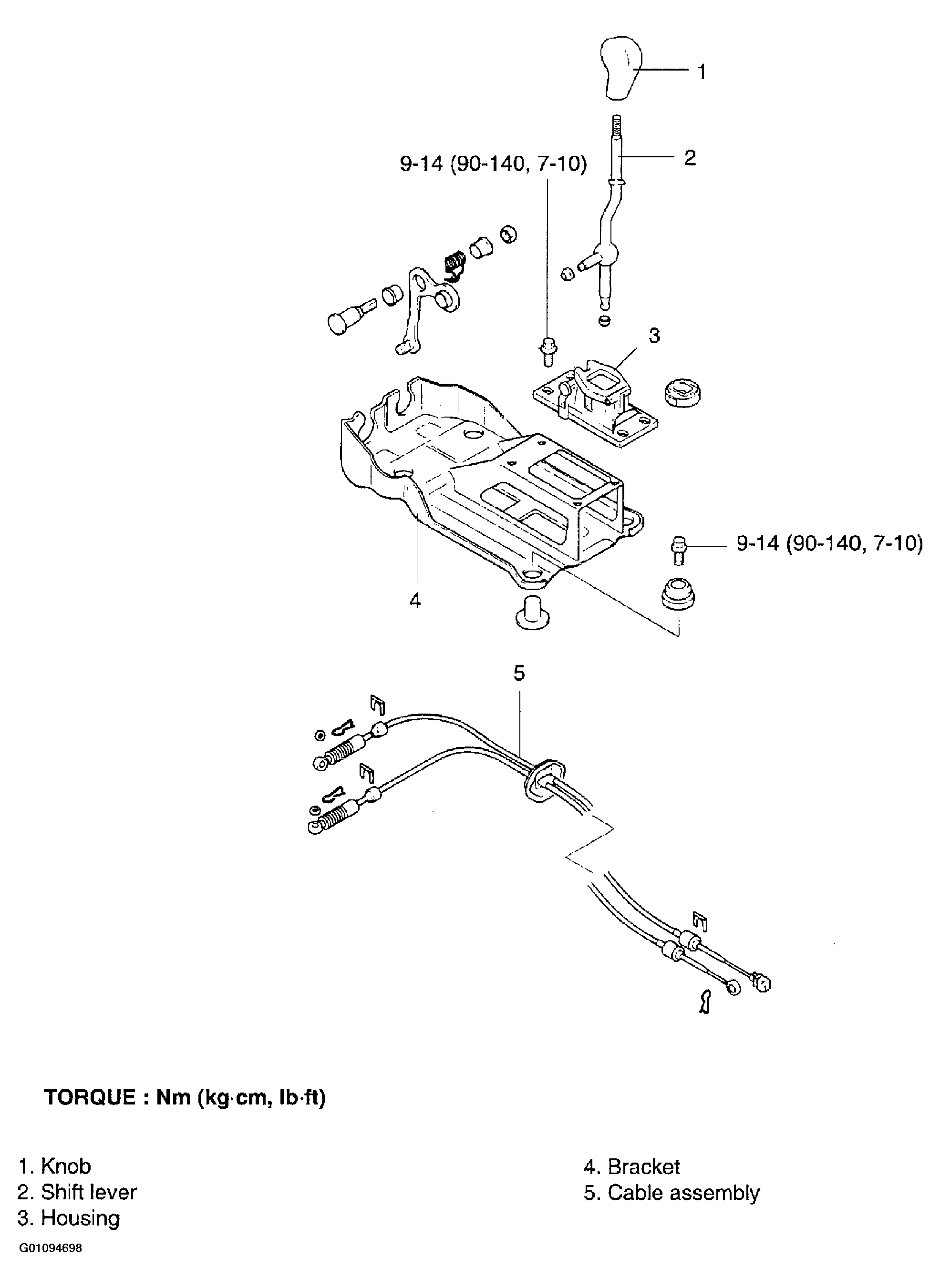

Fig 1: Illustrating Manual Transaxle Shift Control Components (1 Of 2)
G01094698Courtesy of KIA MOTORS AMERICA, INC.

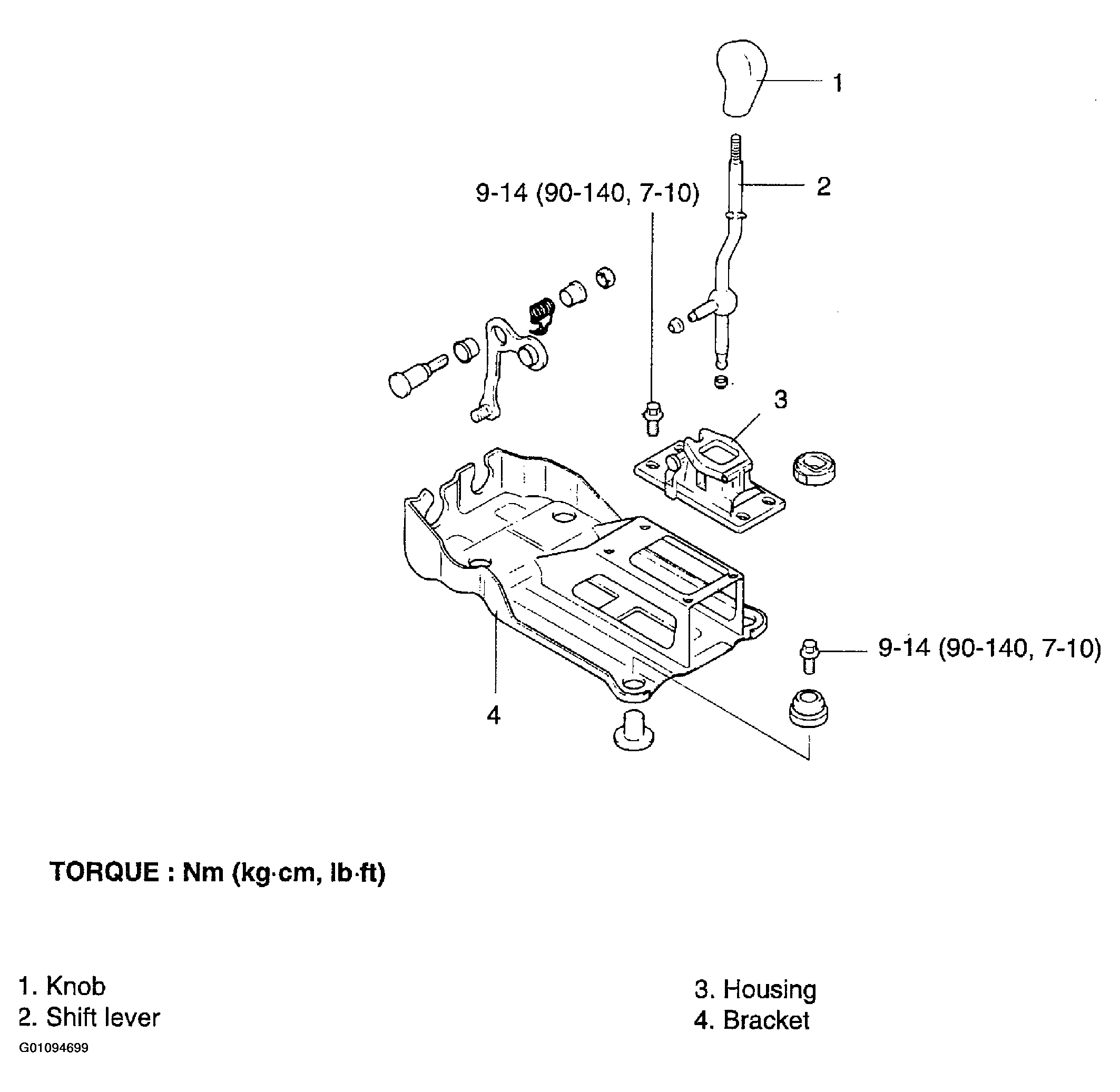

Fig 2: Illustrating Manual Transaxle Shift Control Components (2 Of 2)
G01094699Courtesy of KIA MOTORS AMERICA, INC.
